Supply-Chain Demand Planning Agent Workshop

Build a multi-agent demand-planning assistant on Oracle AI Database — every memory layer, every retrieval primitive, every LLM call traced back to one database. Then see it running in a real chat UI.

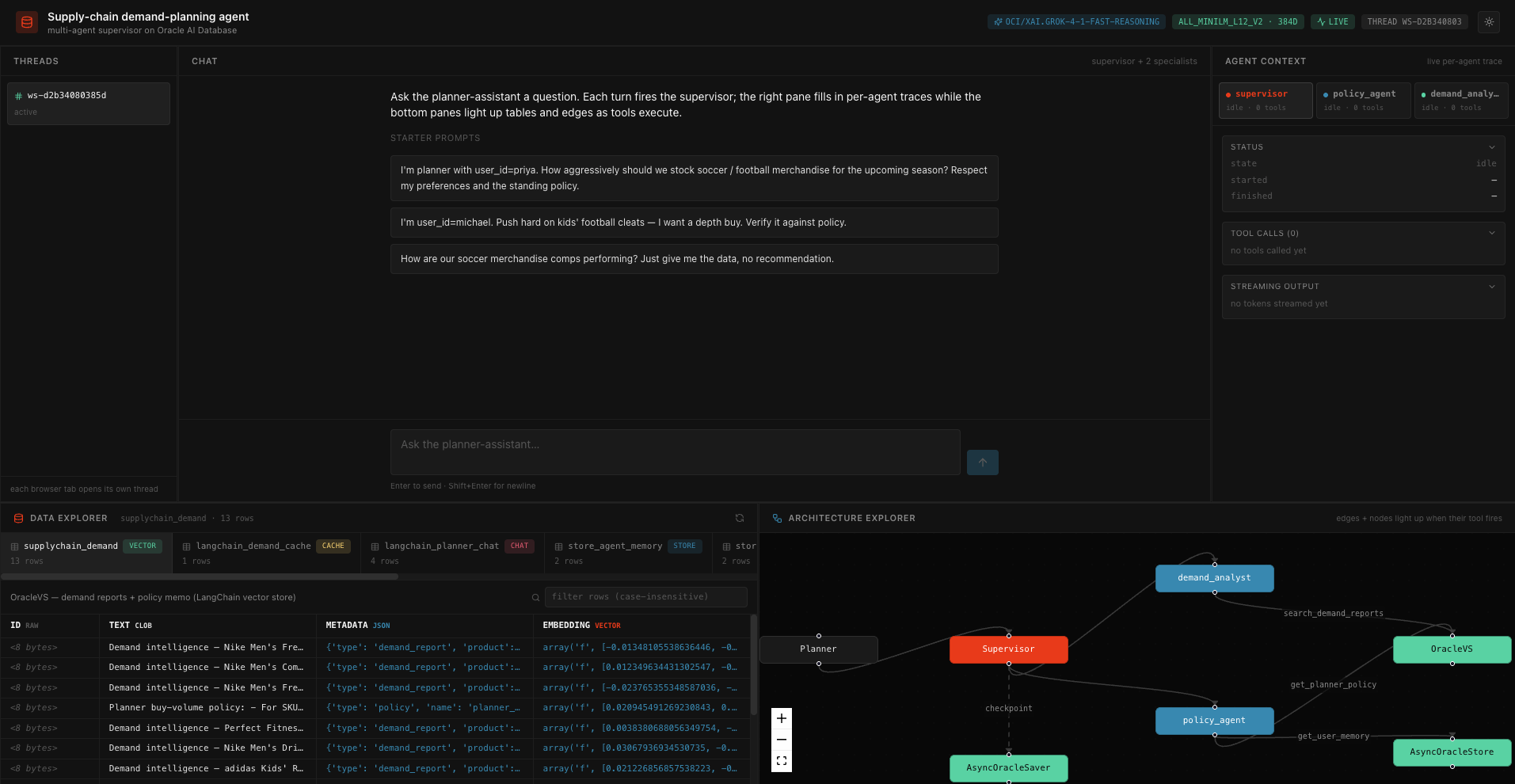

Supply-chain demand planning agent — chat, per-agent context, data explorer, architecture explorer

A planner asks a question in plain language. A LangGraph supervisor decomposes the request and delegates to two specialists — demand_analyst (vector search over historical demand reports) and policy_agent (planner preferences + standing buy-volume policy) — then synthesises a buy recommendation that respects both the policy and the active planner’s saved preferences. The UI shows the chat, a live per-agent trace, the rows backing every tool call, and an animated topology that lights up as tools fire.

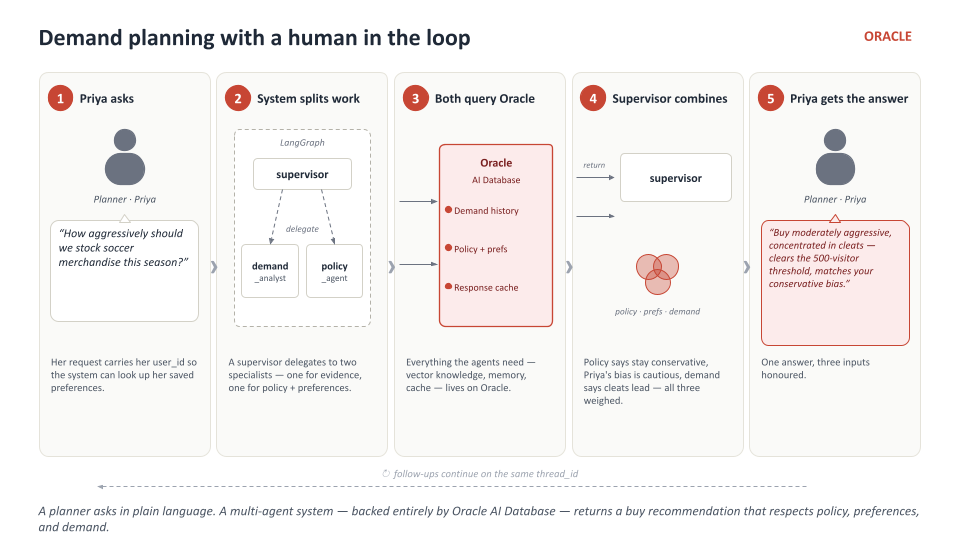

Demand planning with a human in the loop

What you will build (and run)

This workshop is two halves of the same thing:

  1. The notebook (workshop/notebook_student.ipynb) — you build a supervisor-coordinated multi-agent system from primitives:
    • In-database ONNX embeddings (ALL_MINILM_L12_V2, 384-dim) — no external embedding API.
    • OracleVS vector knowledge base of historical product demand reports + a standing buy-volume policy.
    • AsyncOracleStore long-term, cross-thread memory for per-planner saved preferences.
    • AsyncOracleSaver per-thread checkpoint state.
    • OracleSemanticCache LLM-response cache (demoed standalone).
    • Two specialist agents (demand_analyst, policy_agent) compiled with langchain.agents.create_agent.
    • A langgraph_supervisor supervisor that decomposes planner requests, delegates to specialists, and synthesises a buy recommendation that respects both the standing policy and the active planner’s saved preferences.
    • 9 focused coding TODOs across 12 parts, ~60–75 minutes.
  2. The app (app/) — a reference deployment of the same multi-agent system against the same Oracle. Chat pane on the left, per-agent context pane on the right showing what each specialist saw and produced, real-time architecture explorer at the bottom showing tool calls and hand-offs as they happen.

The whole supervisor + 2 specialists loop is roughly 150 lines of Python; the rest is database primitives.

Architecture at a glance

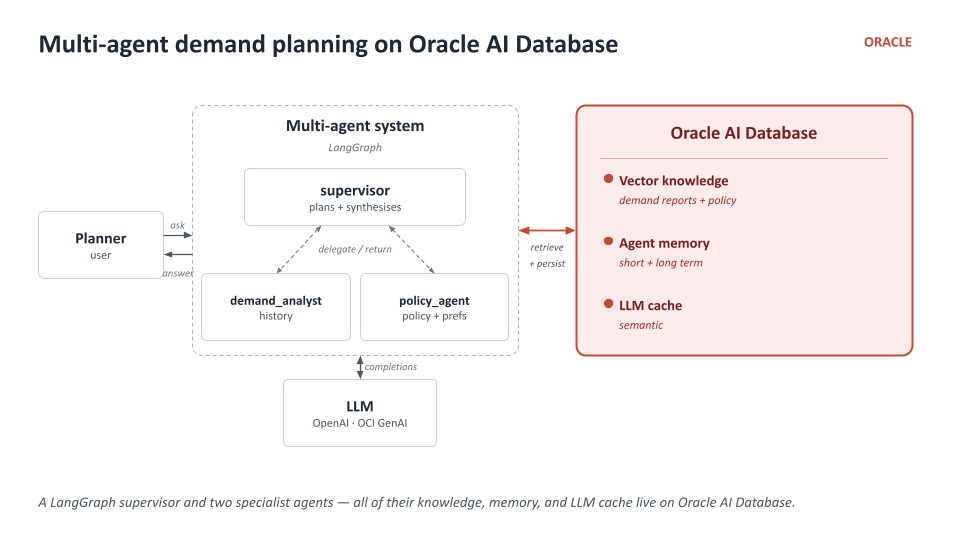

Multi-agent demand planning on Oracle AI Database

A LangGraph supervisor and two specialist agents — all of their knowledge, memory, and LLM cache live on Oracle AI Database. No second store, no second connection string, no second consistency model.

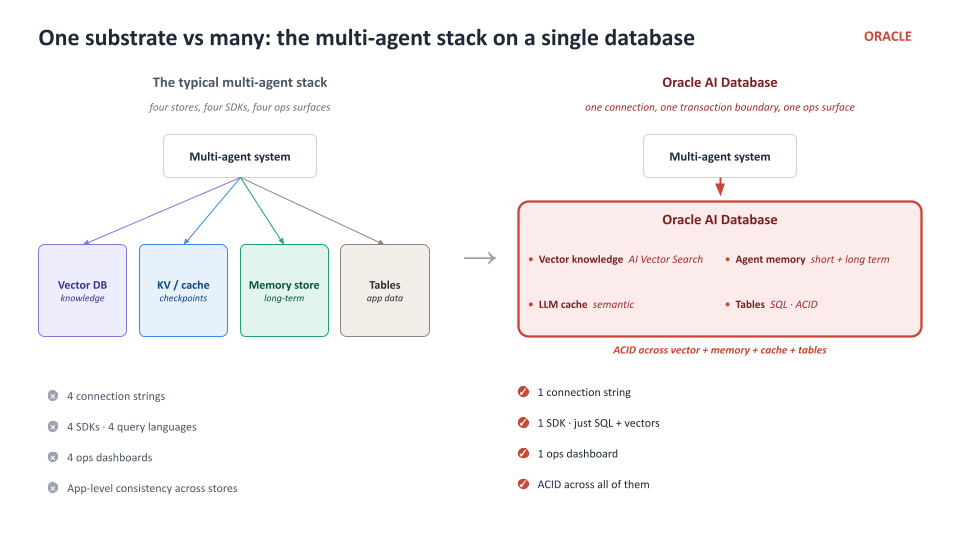

One substrate vs many — the multi-agent stack on a single database

Provider-neutral LLM

The chat model is provider-aware via LLM_PROVIDER. Both endpoints speak the OpenAI wire protocol, so the same ChatOpenAI client works in both modes:

LLM_PROVIDER What it means Required env vars
oci (default) Point the OpenAI client at OCI GenAI’s OpenAI-compatible endpoint OCI_GENAI_API_KEY, OCI_GENAI_ENDPOINT (defaulted to Phoenix), optional LLM_MODEL (default xai.grok-4-1-fast-reasoning)
openai Call OpenAI directly OPENAI_API_KEY, optional LLM_MODEL (default gpt-5.5)

Embeddings are always in-database (Oracle ONNX) — no external embedding key required.

Workshop parts

Part Topic Guide Coding TODO?
1 Setup & connectivity docs/part-1-setup.md —
2 In-DB embeddings (OracleEmbeddings + ALL_MINILM_L12_V2) docs/part-2-embeddings.md TODO 1
3 OracleVS — vector knowledge base docs/part-3-vector-store.md TODO 2
4 AsyncOracleStore — long-term cross-thread memory docs/part-4-store.md TODO 3
5 AsyncOracleSaver — per-thread checkpoints docs/part-5-saver.md TODO 4
6 OracleSemanticCache docs/part-6-cache.md TODO 5
7 Naive substring vs semantic vector search docs/part-7-search-comparison.md TODO 6
8 demand_analyst specialist docs/part-8-demand-analyst.md TODO 7
9 policy_agent specialist docs/part-9-policy-agent.md TODO 8
10 Supervisor + end-to-end invocation docs/part-10-supervisor.md TODO 9
11 OracleChatMessageHistory standalone docs/part-11-chat-history.md —
12 Teardown — —

TODO checklist — 9 coding TODOs at a glance, each with a hard-stop assert checkpoint.

Troubleshooting — common failures and fixes.

Notebook pair

Notebook When to open
workshop/notebook_student.ipynb Your working notebook — 9 blank-stub TODOs + hard-stop asserts that fail loudly until you implement
workshop/notebook_complete.ipynb The same 12-part notebook with all 9 TODOs filled in — open when stuck, or as a reference once you’ve finished

Getting started

This workshop lives inside the oracle-ai-developer-hub repository. Use git sparse-checkout to pull just this workshop without cloning the rest of the hub:

# Clone the hub with no files and no blobs
git clone --filter=blob:none --no-checkout https://github.com/oracle-devrel/oracle-ai-developer-hub.git
cd oracle-ai-developer-hub

# Enable sparse-checkout and select only this workshop
git sparse-checkout init --cone
git sparse-checkout set workshops/supplychain_demand_agent_workshop

# Materialise the files and move into the workshop
git checkout main
cd workshops/supplychain_demand_agent_workshop

You will need: Python 3.11+, Node 20+, Docker (or Podman), and an OCI Generative AI key (or OpenAI key).

# 1. Bring Oracle up (~3-5 min on first run).
docker compose -f .devcontainer/docker-compose.yml up -d oracle-free
docker compose -f .devcontainer/docker-compose.yml logs -f oracle-free | grep -m1 "DATABASE IS READY TO USE"

# 2. Python deps for setup + backend.
pip install -r app/backend/requirements.txt
pip install jupyter datasets

# 3. Set provider credentials.
export LLM_PROVIDER=oci
export OCI_GENAI_API_KEY=sk-...
export OCI_GENAI_ENDPOINT=https://inference.generativeai.us-phoenix-1.oci.oraclecloud.com
# (or LLM_PROVIDER=openai + OPENAI_API_KEY=sk-...)

# 4. One-time setup — creates AGENT user, loads the ONNX embedder, seeds the data.
python app/scripts/bootstrap.py
python app/scripts/onnx_setup.py
python app/scripts/seed_supplychain.py

# 5. Open the workshop notebook.
jupyter lab workshop/notebook_student.ipynb

# 6. (Optional) Start the chat app to see your wired pieces run live.
python -m uvicorn app.backend.main:app --host 0.0.0.0 --port 8000 &
cd app/frontend && npm install && npm run dev -- --host 0.0.0.0 --port 3000

Open the notebook and work through TODOs 1–9. Each has a hard-stop assert below it that fails until your implementation is correct. Then open http://localhost:3000 to see the same primitives wired up as a chat app.

Repository layout

workshops/supplychain_demand_agent_workshop/
├── README.md                          ← you are here
├── .devcontainer/                     ← Oracle compose + (optional) devcontainer infra
├── images/                            ← architecture diagrams + app screenshot
├── app/
│   ├── scripts/
│   │   ├── bootstrap.py                   AGENT user + vector memory pool
│   │   ├── onnx_setup.py                  downloads + loads the ONNX embedder
│   │   └── seed_supplychain.py            Hugging Face dataset → OracleVS + AsyncOracleStore
│   ├── backend/                       FastAPI + WebSocket supervisor streaming
│   └── frontend/                      React + Vite + Tailwind chat UI
├── workshop/
│   ├── notebook_student.ipynb         ← 9 blank-stub TODOs + hard-stop checkpoints
│   └── notebook_complete.ipynb        ← solutions filled in
└── docs/                              per-part guides + TODO checklist + troubleshooting

Memory taxonomy

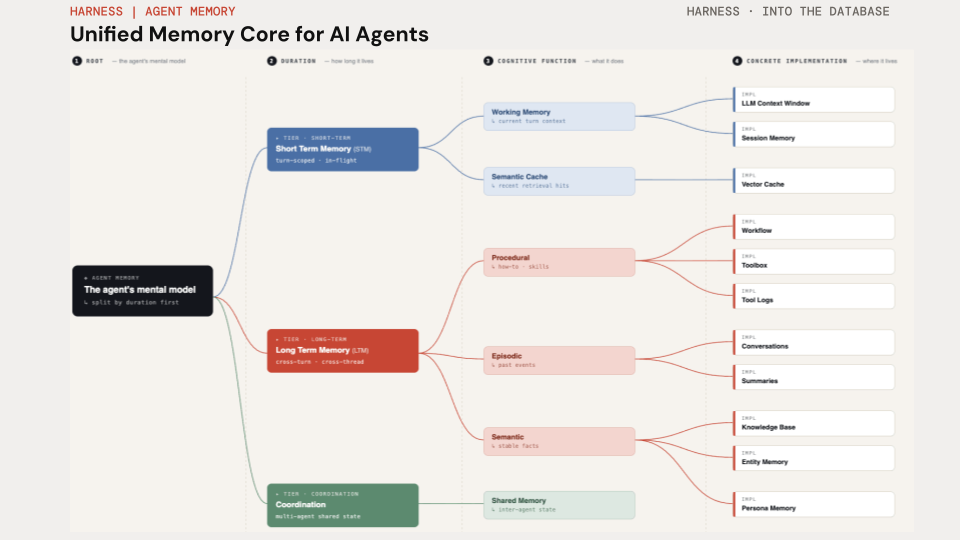

Unified memory core for AI agents

Agent memory splits first by duration (short-term vs long-term vs coordination), then by cognitive function (working, episodic, procedural, semantic, persona). The two memory primitives in this workshop cover the two horizons: AsyncOracleSaver is the short-term / per-thread tier, AsyncOracleStore is the long-term / cross-thread tier. Both live on Oracle AI Database.

Semantic cache

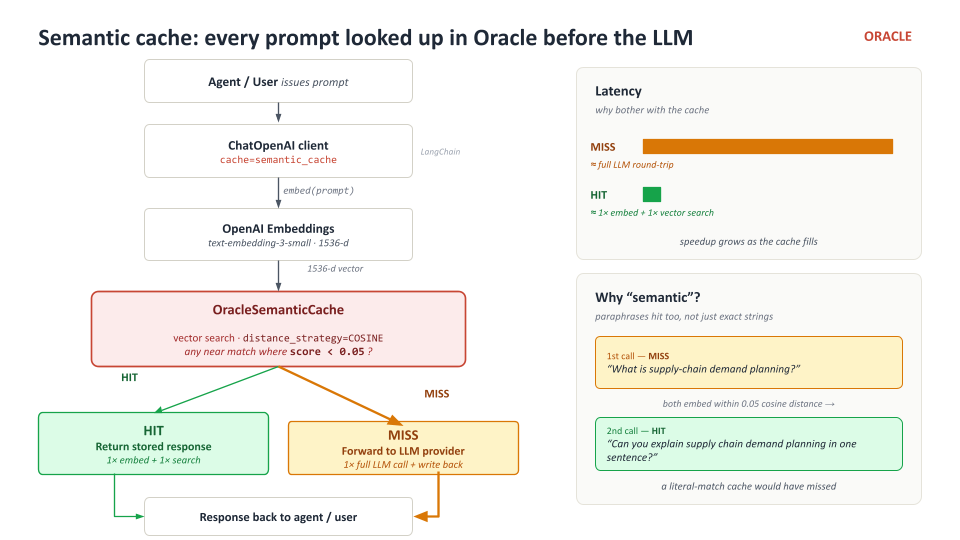

Semantic cache — every prompt looked up in Oracle before the LLM

Traditional caches key by the literal request — two prompts asking the same thing in different words both miss. OracleSemanticCache keys by the embedding of the prompt, so paraphrases, capitalisation drift, and punctuation all collapse to the same cached response.

Multi-agent topology

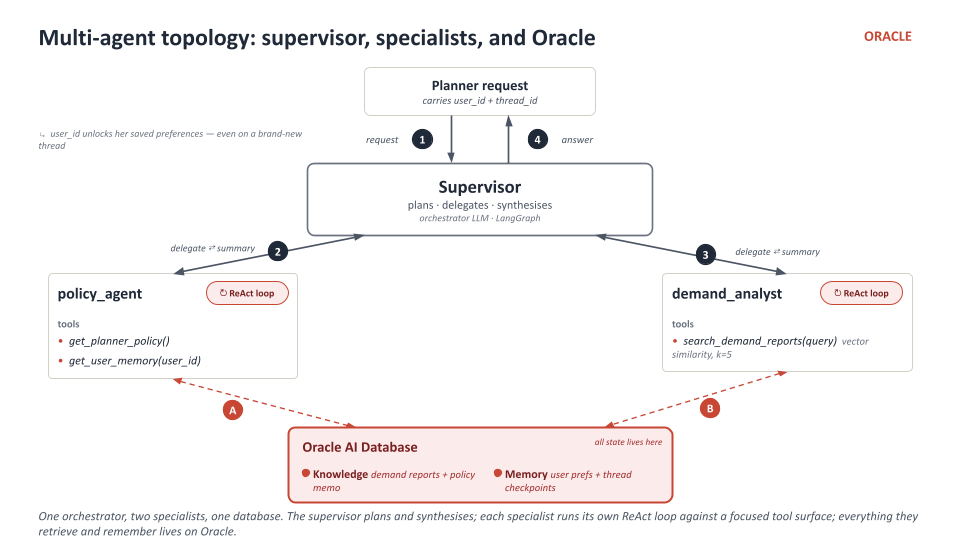

Multi-agent topology — supervisor, specialists, and Oracle

The supervisor plans and synthesises; each specialist runs its own ReAct loop against a focused tool surface; every retrieval path ends in Oracle.

Provider layers

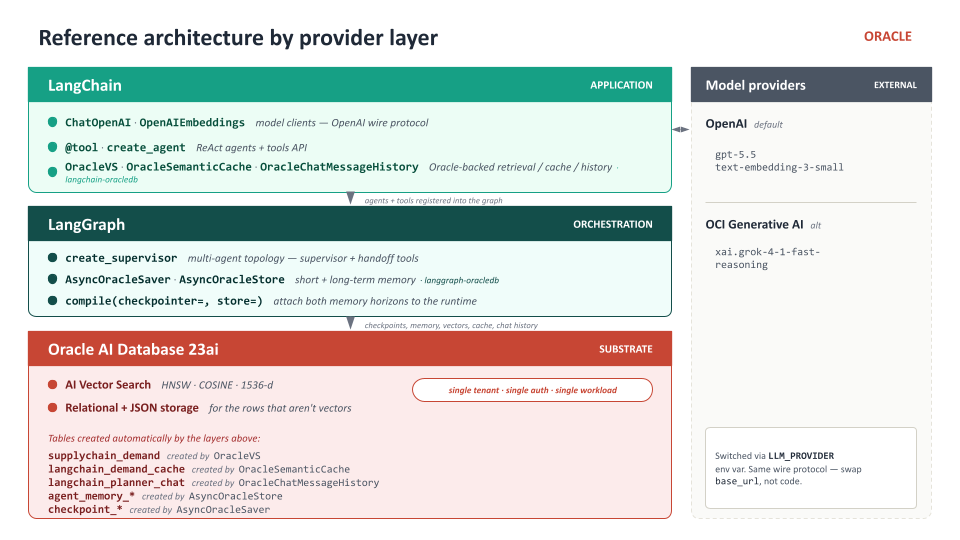

Reference architecture by provider layer

LangChain owns the application layer (model clients, tools, retrieval/cache/history). LangGraph owns the orchestration layer (supervisor, checkpointer, store). Oracle AI Database owns the substrate (vectors, JSON, relational, all ACID).
