JSON Relational Duality Views

Documentation: Creating Duality Views

🧭 Advanced reference. Duality views are not part of the notebook. account_dv and customer_dv are seeded by app/scripts/seed.py, the running app exposes get_document / query_documents, and the app registers account_document, which falls back to the same document built with SQL/JSON when the view cannot run (see the caveat below). The notebook does not use it. Part 4 gave the agent a vector-indexed toolbox (dispatchable functions) and Part 5 layered the agent loop on top. Duality views add a third shape: document-shaped reads of the relational schema via Oracle 23ai/26ai’s JSON Relational Duality Views.

A duality view is a JSON projection over a set of tables joined by PK/FK/UK relationships. The same row in accounts is accessible as a relational tuple and as a nested JSON document that includes its customer, branch, and the arrays of cards and transactions (with their merchant nested inside). One read, no JOINs, no client-side reshaping.

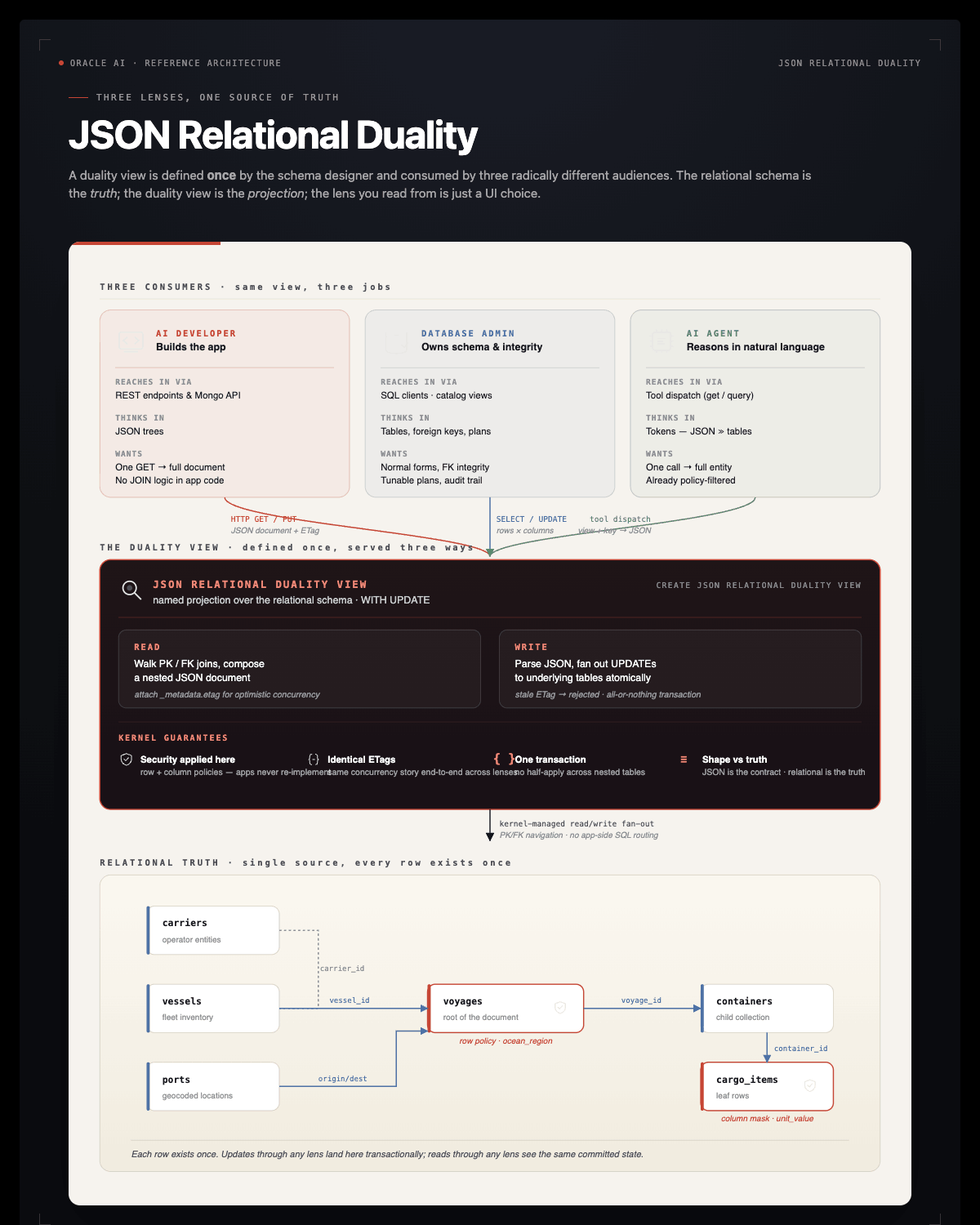

JSON Relational Duality — three lenses, one source of truth

Why this matters for an LLM agent specifically

GPT-class models reason about JSON markedly better than they reason about tabular join results. Every time the agent asks “tell me everything about account 7”, the choice today is: write a 4-table JOIN, parse the rows, mentally reassemble the document. With a duality view the agent runs:

SELECT JSON_SERIALIZE(data PRETTY) FROM account_dv WHERE JSON_VALUE(data, '$._id') = 7

and gets the document back already shaped. Fewer tool turns, fewer hallucinated columns.

Why this matters for the harness specifically

One SELECT JSON_SERIALIZE(data) returns a fully nested document — customer, branch, cards, and transactions with their merchant — in a single tool call, instead of the agent composing a multi-table JOIN and mentally reassembling the shape.

The two duality views

View	Shape	When the agent reaches for it
`account_dv`	account → customer; account → branch; account → cards[]; account → transactions[]	Whole-account queries: “what’s on account X?”, “all cards for account 7”
`customer_dv`	customer → accounts[]; customer → loans[]; account → branch	Customer queries: “which loans does customer Y hold?”

Both are read-only — no WITH UPDATE clause, so DML through them is rejected by the kernel.

⚠️ On this Free image, a duality view and kernel identity can collide. Oracle’s DV engine cannot read a view whose base table carries more than one DBMS_RLS policy (the Deep Data Security reference puts a region predicate plus an amount mask on FINANCE.ACCOUNTS). The view DDL succeeds and the dictionary reports it VALID, but every SELECT fails with a misleading ORA-40606: Table 'ACCOUNTS' does not have a primary or unique key — the PK is intact. The app (and its account_document) therefore try the view first and fall back to the same document built with JSON_OBJECT/JSON_ARRAYAGG over the base tables: VPD still applies to that query, so only the projection mechanism changes, not the trust boundary. Run python app/scripts/bootstrap.py && python app/scripts/seed.py on a fresh volume and you will see the view read fine until setup_deep_security.py installs the policies.

Reference: Register `tool_get_document`

Read one full document from a duality view by primary key. The agent calls this instead of writing JOINs whenever it needs the full shape of an entity.

view must be one of account_dv / customer_dv. key is the value of the document _id. Return the JSON document as a string, or a JSON {"error": ...} if the view name is unknown or no document matches.

The query you need:

SELECT JSON_SERIALIZE(data PRETTY) FROM FINANCE.{view} WHERE JSON_VALUE(data, '$._id') = :k

Bind key as an integer when it parses as a digit, otherwise as a string.

Solution:

@register
def tool_get_document(view: str, key: str) -> str:
    """Read one full document from a JSON Relational Duality View by primary key.
    Use this instead of writing JOINs whenever you need the full shape of an entity
    (an account with its customer/branch/cards/transactions, or a customer with its
    accounts/loans). Returns a JSON document.

    `view` must be one of: account_dv, customer_dv.
    `key` is the value of the document _id (numeric account_id or customer_id, as a string).
    """
    allowed = {"account_dv", "customer_dv"}
    if view not in allowed:
        return json.dumps({"error": f"unknown view {view!r}; allowed: {sorted(allowed)}"})
    try:
        with agent_conn.cursor() as cur:
            cur.execute(
                f"SELECT JSON_SERIALIZE(data PRETTY) FROM {DEMO_USER}.{view} "
                f" WHERE JSON_VALUE(data, '$._id') = :k",
                k=int(key) if str(key).isdigit() else key,
            )
            row = cur.fetchone()
        if not row:
            return json.dumps({"error": f"no document with _id={key} in {view}"})
        body = row[0].read() if hasattr(row[0], "read") else str(row[0])
        return body
    except Exception as e:
        return json.dumps({"error": f"{type(e).__name__}: {e}"})

tool_query_documents(view, where, max_rows) — for filtering a duality view with a SQL predicate — is pre-built right after this TODO.

Writable views with ETag-based concurrency

A duality view whose definition carries WITH UPDATE is writable: UPDATE <view> SET data = … writes back to the underlying base tables, atomically, with the row policies still enforced.

Two pieces make that safe in a multi-writer world:

Piece	Purpose
`WITH UPDATE` clause	Tells the kernel the view is writable; without it, `UPDATE` raises `ORA-42692`
`_metadata.etag` field on every retrieved document	Optimistic concurrency. Stale writes raise `ORA-42699`

This is the same model HTTP uses for If-Match headers — but enforced inside the database, by the SQL engine, on every UPDATE through the view. No application-layer locking, no SELECT … FOR UPDATE fan-out, no client-side cache reconciliation logic. To try it, add WITH UPDATE to a copy of the view DDL in app/backend/db/seed_finance.py and re-run seed.py:

Round-trip: read a document, flip a field, write it back with the matching ETag. The ETag rotates atomically.
Conflict: two readers grab the same document. First writer commits; second writer’s ETag is now stale and the kernel raises ORA-42699.

Why we don’t expose the writable path to the agent

The harness keeps tool_run_sql SELECT-only and there’s no tool_update_document. Adding one would re-open the write path we closed — a hostile prompt could rewrite transaction status or account balances. The cells below are SQL-level demonstrations of the duality mechanic, not agent capabilities. If you decide to give your agent narrow write authority later (e.g., status updates only, gated by an identity check), this is the foundation you’d build on.

Key takeaways

One row, two equally-valid shapes. A duality view serves the SAME data as a relational tuple AND a JSON document — kernel-managed, no app-layer mapping. The relational schema is the truth; the JSON shape is the contract.
Three personas, one source. A DBA, an AI developer, and an AI agent all consume the same row through their preferred lens (SQL, REST/JSON, tool dispatch). Defining the projection once kills the per-consumer mapping code.
Writable views need WITH UPDATE. Without it, UPDATE … raises ORA-42692. With it, you get server-side optimistic concurrency for free — every doc carries _metadata.etag, stale writes raise ORA-42699.

Troubleshooting

ORA-00900 / ORA-02000 on CREATE OR REPLACE JSON RELATIONAL DUALITY VIEW — Your Oracle image predates duality view support. Confirm with SELECT BANNER_FULL FROM v$version. Duality views require Oracle 23ai or later.

ORA-42699: can't update through duality view because the document's etag is out of date — Expected in the conflict demo. In real code, the second writer would re-read the row, re-apply its change, and retry.

ORA-42692: cannot UPDATE/DELETE through duality view — The view is read-only (no WITH UPDATE clause). Either change the view or use the underlying table.
