oracle-ai-developer-hub

Enterprise Data Agent — Supply Chain Demo

A chat UI for the agent harness built in enterprise_data_agent.ipynb. Same harness, same Oracle 26ai database, but exposed through a Flask + Socket.IO API and a React + Vite + Tailwind front-end.

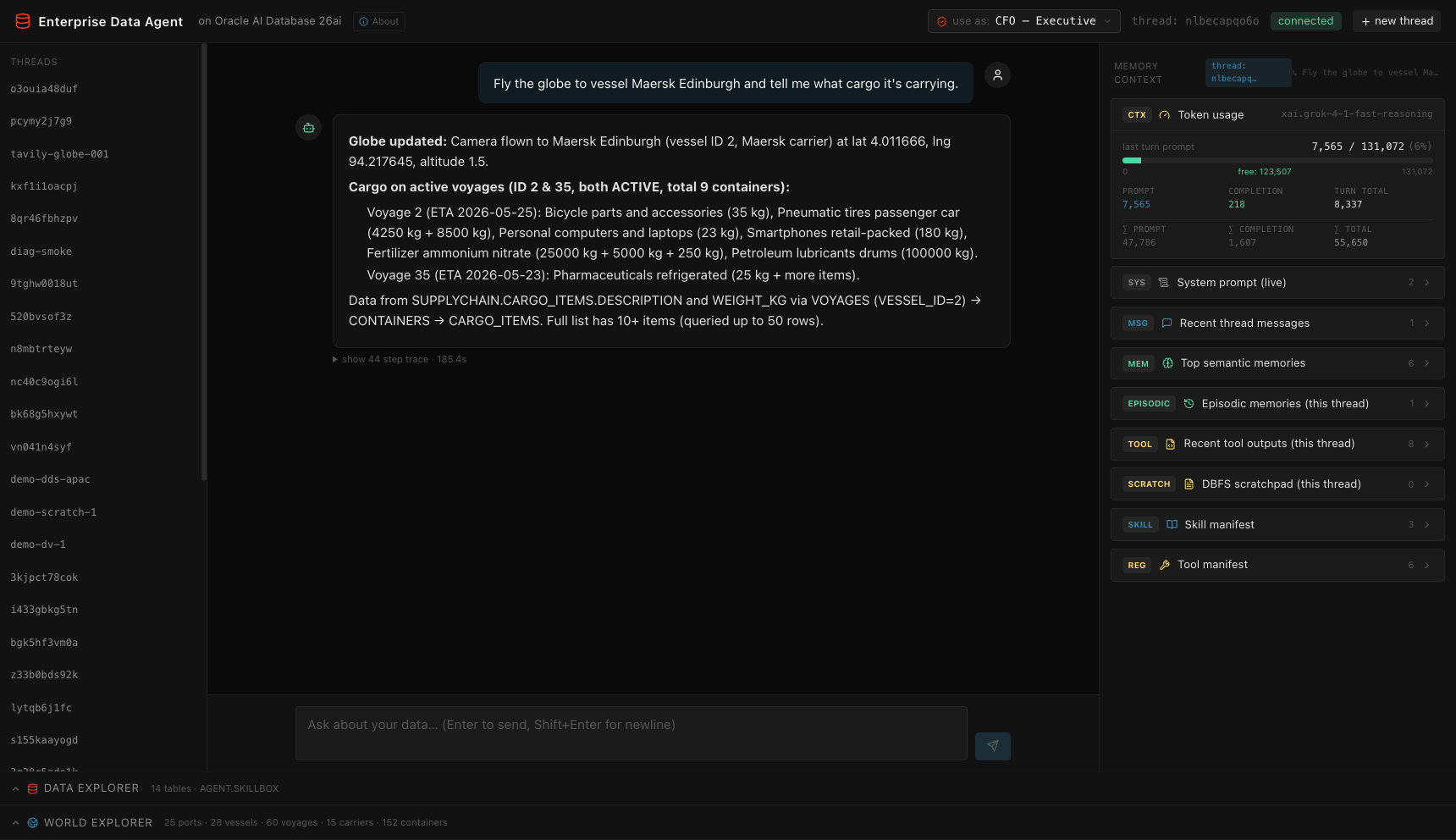

Chat with agent-driven globe control and live token usage Asking the agent to fly the globe to a vessel and report its cargo. Left rail: thread list. Centre: the assistant’s grounded answer with a “show 44 step trace” link. Right pane: live Token usage meter (last-turn prompt vs. model-max), system prompt, recent thread messages, top semantic memories, episodic memories, recent tool outputs, DBFS scratchpad, skill manifest, tool manifest — all scoped to the active thread.

Demo domain: a global container-shipping operation. The SUPPLYCHAIN schema models 15 carriers, 25 ports (with SDO_GEOMETRY lat/long), 30 vessels, 60 voyages across four ocean regions, current AIS positions for the active fleet, ~150 containers in transit, and ~300 cargo items with HS codes, declared values, and weights. The agent answers questions over all of it via SQL, spatial queries (SDO_WITHIN_DISTANCE), in-database compute (Oracle MLE), JSON Relational Duality Views, and identity-aware row/column filtering (DDS / DBMS_RLS).

What this application teaches

This app is a working reference for building a production-shaped agent harness on top of Oracle AI Database 26ai. Every screen and every tool corresponds to a concept you’d otherwise have to assemble from a half-dozen disjoint services. Read it twice and you’ll have a working mental model for shipping enterprise AI agents that don’t leak data, don’t hallucinate schemas, and don’t crumble when a model rejects authentication.

1. The agent harness pattern: Agent = Model + Harness

The chat loop in agent/harness.py is ~100 lines of Python. Read it once and you understand the entire control flow: build a context (skill manifest + OAMP context card + retrieved schema facts + persona block), retrieve top-k tools by vector similarity over toolbox, call the LLM, dispatch any tool calls, offload full outputs to OAMP and inline a compact reference back into the prompt, repeat until the model returns plain text or the budget runs out, then guard-stop with a forced finalization. No planner, no router, no sub-agent spawning. The model picks the path; the harness owns state integrity.

You’ll learn:

2. Identity-aware authorization (the “Use As:” selector)

The trust boundary follows the end user, not the database connection. Pick a persona in the header and the same SQL returns different data:

Persona Clearance Regions Effect
agent (default) STANDARD all financials masked + admin tables forbidden
cfo EXECUTIVE all full visibility
analyst.east STANDARD ATLANTIC + MEDITERRANEAN regional row filter + financials masked
analyst.west STANDARD PACIFIC + INDIAN regional row filter + financials masked
ops.viewer STANDARD all cargo/container tables forbidden + commercial cols masked

You’ll learn:

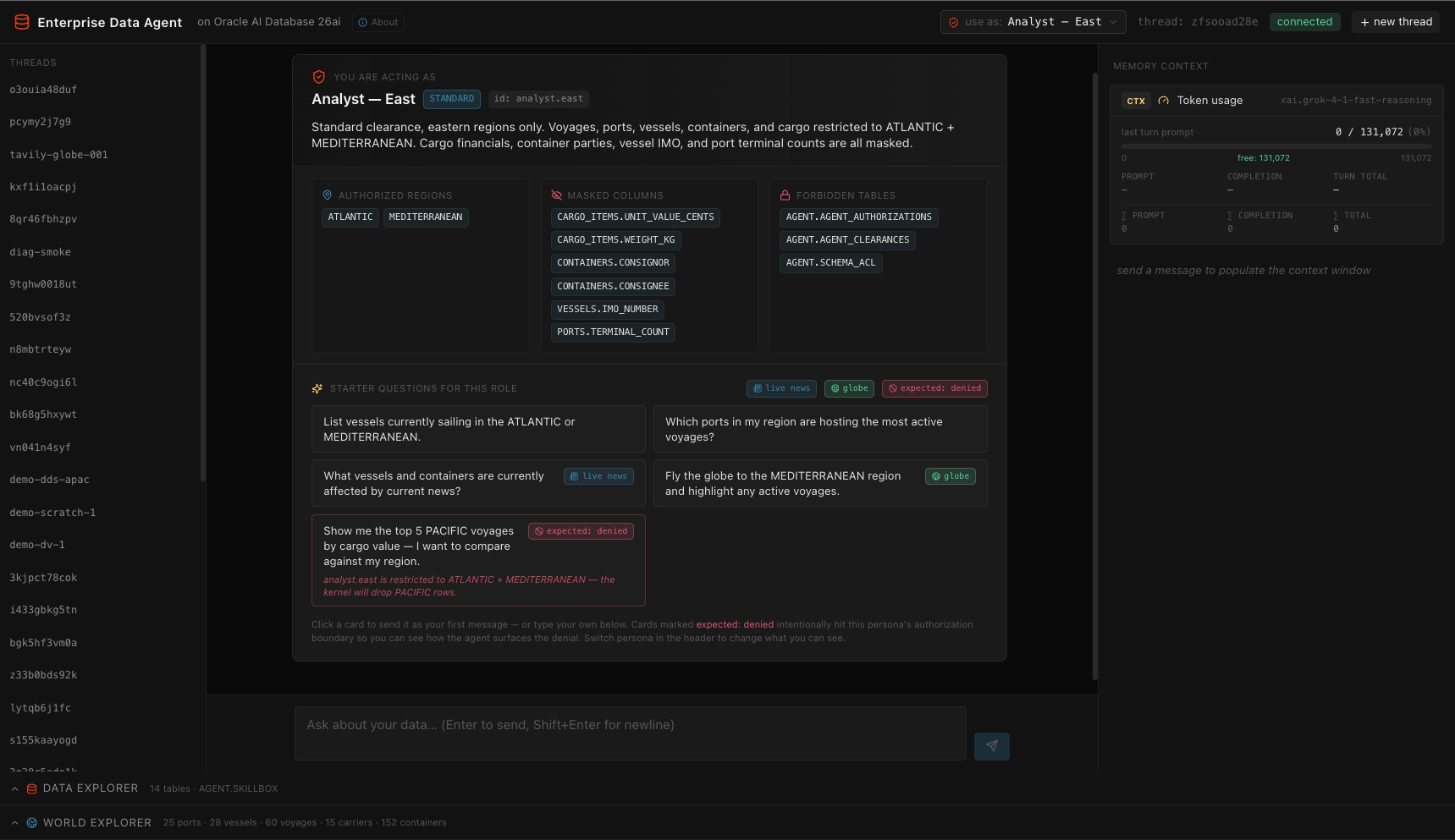

Welcome mat for the Analyst — East persona, with restriction tiles and tagged starter prompts Welcome mat shown on every fresh thread: the active persona’s clearance, authorized regions, masked columns, and forbidden tables are visible at a glance. Starter prompts are tagged — live news cards fire search_tavily, globe cards drive the World Explorer, and the red expected: denied card is calibrated to hit this persona’s authorization wall (here, analyst.east asking for PACIFIC voyages — the kernel will drop the rows). Switch persona from the header chip and the entire mat redraws.

3. The Oracle AI Database 26ai primitive set, in one app

The harness is deliberately built from primitives the database already ships, so you can read each integration end-to-end:

Concept Implementation surface
VECTOR(384, FLOAT32) columns toolbox, skillbox, OAMP-managed memory tables
HNSW vector indexes (ORGANIZATION INMEMORY NEIGHBOR GRAPH) toolbox_emb_v, skillbox_emb_v, OAMP indexes
vector_memory_size pool db/vector_pool.py, scripts/bootstrap.py allocates 512M
In-database ONNX embeddings DBMS_VECTOR.LOAD_ONNX_MODEL of all-MiniLM-L12-v2, queried via VECTOR_EMBEDDING(... USING :t AS DATA)
Cross-encoder reranker (optional) Same DBMS_VECTOR.LOAD_ONNX_MODEL mechanism + PREDICTION(reranker USING :q AS DATA1, doc AS DATA2)
VECTOR_DISTANCE(..., COSINE) top-k retrieval in every tool/skill/memory query
Oracle MLE (JavaScript in the kernel) agent/mle.py wraps DBMS_MLE.CREATE_CONTEXT/EVAL/IMPORT_FROM_MLE; agent uses it for percentiles, stats, unit conversions
DBFS (Database File System over SecureFile LOBs) db/dbfs.py — POSIX-like scratchpad mounted at /scratch, scoped per-thread
JSON Relational Duality Views voyage_dv and vessel_dv (created in db/seed_supplychain.py); agent reads via tool_get_document / tool_query_documents
Oracle Spatial SDO_GEOMETRY columns, MDSYS.SPATIAL_INDEX_V2, SDO_WITHIN_DISTANCE, SRID 8307 (WGS84)
DBMS_SCHEDULER scaffolded for periodic schema rescans (notebook §12)
DBMS_RLS / DDS pattern mirrored in api/identities.py with Python-layer enforcement of the same rule shape

You’ll learn how each primitive composes with the others — e.g., a duality view’s row filter inherits the underlying-table DDS policy automatically, so an analyst.east user reading voyage_dv for a PACIFIC voyage just gets nothing back.

4. Memory architecture: OAMP + thread isolation + provenance

The Oracle AI Agent Memory Package (oracleagentmemory) owns long-term semantic memory. The harness layers thread-scoping and provenance on top:

You’ll learn how to scope per-thread state hard (scratchpad, episodic) while keeping institutional knowledge (tool_remember writes) globally retrievable but provenance-tagged.

5. Tool patterns: registry, retrieval, dispatch

Tools live in two parallel structures:

You’ll learn:

6. Live web access: Tavily as a tool

search_tavily(query, max_results, topic) gives the agent real-time web/news. The pattern is:

  1. Search news → 2. Extract entities (ports, regions, weather) → 3. Cross-reference via run_sql against SUPPLYCHAIN → 4. Summarize with both URL citations and data hits.

Each result is also persisted into OAMP as kind=web_search memories so future turns can recover them via search_knowledge without re-querying. You’ll see this fire on the “What vessels and containers are currently affected by current news?” starter on CFO and Analyst personas.

7. Chat-driven UI control: focus_world

The agent isn’t just a backend — it can drive the UI. focus_world(target_kind, target, altitude) resolves a vessel name / container_no / port code / carrier name / ocean region to lat/lng and emits a Socket.IO event. The World Explorer panel:

You’ll learn how to plumb an agent tool through to live front-end state via a per-turn set_request_socket(socketio, sid) context, without coupling tool implementations to the API layer.

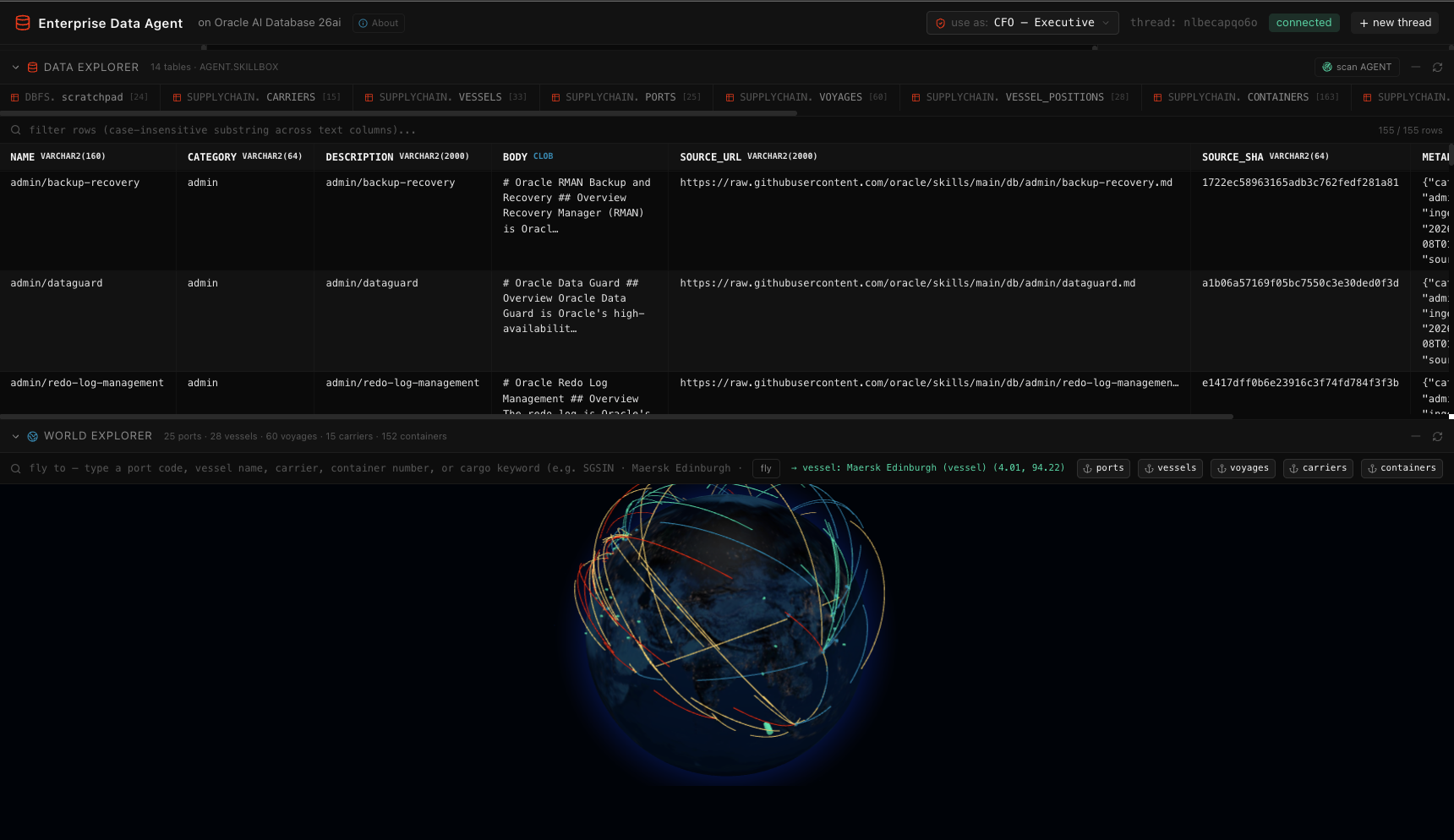

World Explorer with voyage arcs over Earth-night, plus the Data Explorer above showing the AGENT.SKILLBOX table World Explorer (bottom) renders the same SUPPLYCHAIN data as a Palantir-style 3D globe — ports, vessels at AIS positions, voyage arcs colour-coded by ocean region, carriers, and per-vessel container clusters. The search bar resolves port codes, vessel names, carrier names, container numbers, or HS-code keywords; clicking fly pans the camera. The Data Explorer above (155 rows of AGENT.SKILLBOX shown) lives in the same view so you can see the structured catalogue and the spatial layer side-by-side. Both panes apply the active persona’s identity filter — switch to analyst.east and only ATLANTIC + MEDITERRANEAN voyages render, with masked columns greyed out in the grid.

8. Operational legibility (the right-side pane and bottom panels)

Every input the model received is visible:

The Data Explorer at the bottom mirrors the SUPPLYCHAIN schema (and the agent’s own bookkeeping tables, including the synthetic DBFS.scratchpad virtual table) with identity-aware row filtering and column masking. Tabs pulse with a colour-coded chip (READ blue / SCAN green / WRITE amber) when the agent touches them — driven by tables_touched Socket.IO events that the harness emits inline with each tool dispatch.

The World Explorer renders the spatial layer of the same data (ports, vessels at AIS positions, voyage arcs, carriers at HQ centroids, container clusters per vessel) with the same identity filter applied — switch to analyst.east and only Atlantic + Mediterranean voyages render.

You’ll learn how to make an agent’s reasoning auditable by showing exactly what entered its prompt, exactly what tools it dispatched, and exactly what data those tools returned — without baking that observability into the agent’s own logic.

9. Provider routing and graceful degradation

agent/llm.py is an LlmRouter that:

You’ll learn how to ship an agent that doesn’t go dark when a provider has a bad day, and how to make .env parse-resilient so a typo doesn’t take down the harness.

10. The “boring on purpose” closing note

The whole thing is ~1500 lines of Python and ~2500 lines of React. There is no LangChain, no AutoGen, no LlamaIndex — just python-oracledb, oracleagentmemory, openai, and the OpenAI-compatible OCI endpoint. The point of the app is to show how much of an enterprise agent’s hard problems (memory, identity, observability, sandboxing, durable state, semantic retrieval over your own data) are already solvable with primitives Oracle AI Database 26ai ships out of the box. Read the harness end-to-end. You should know exactly where every decision is made and every side effect lands.

Browser (React SPA)
  ├─ Header                  -- thread id, connection status, "new thread"
  ├─ ThreadList (left)       -- OAMP threads, click to switch
  ├─ ChatPane (center)       -- message bubbles + streaming tool-call trace
  └─ MemoryContext (right)   -- live snapshot of what's in the agent's context
                                (recent messages · top memories · tool outputs ·
                                 skill manifest · tool manifest)

WebSocket + REST (Socket.IO)
  ├─ send_message            -- runs one turn of the agent loop, streams tool events
  ├─ new_thread              -- mints a thread id
  ├─ request_context_window  -- on-demand context refresh
  └─ /api/threads, /api/context/<thread_id>, /api/health

Flask API (Python / eventlet)
  ├─ agent/harness.py        -- the §11 loop, with skill manifest prepended (§11.5)
  ├─ agent/tools.py          -- search_knowledge · run_sql · exec_js · remember ·
  │                             scan_database · load_skill · list_skills
  ├─ agent/skills.py         -- skillbox (Oracle skills repo ingestion)
  ├─ agent/mle.py            -- exec_js via DBMS_MLE
  ├─ memory/manager.py       -- OAMP client + in-DB ONNX embedder
  ├─ retrieval/scanner.py    -- §5 scanner condensed
  └─ api/{routes, events, context}.py

python-oracledb (thin)
  └─ Oracle AI Database 26ai (Docker, same as the notebook)
        ├─ AGENT schema       -- toolbox, skillbox, OAMP-managed memory tables
        └─ SUPPLYCHAIN schema -- carriers / vessels / ports (SDO_GEOMETRY) /
                                 voyages / vessel_positions / containers /
                                 cargo_items + voyage_dv / vessel_dv (JSON DVs)

Prerequisites

The app no longer requires the notebook to have been run — scripts/bootstrap.py handles every prerequisite that the notebook used to set up.

Setup

cd app

# Configure env
cp .env.example .env
# edit .env — at minimum set OPENAI_API_KEY

# Backend
python -m venv .venv
source .venv/bin/activate
pip install -r backend/requirements.txt

# Frontend
cd frontend && npm install && cd ..

Bootstrap (one-time, requires SYSDBA + container access)

python scripts/bootstrap.py

Walks through six steps:

  1. Create the AGENT user with every grant the harness needs (CONNECT, RESOURCE, MLE, DBFS, MINING MODEL, V$SQL/V$SQLSTATS catalog access).
  2. ALTER SYSTEM SET vector_memory_size = 512M SCOPE=SPFILE CONTAINER=ALL.
  3. If the running instance hasn’t picked up the pool, auto-bounce the container (docker restart oracle-free) and wait for FREEPDB1 to come back. Pass --no-bounce to skip and bounce yourself.
  4. Stage + register the ALL_MINILM_L12_V2 ONNX embedder (~117 MB download, copies into the container, DBMS_VECTOR.LOAD_ONNX_MODEL).
  5. Create the DBFS scratchpad (tablespace + store + mount at /scratch).
  6. Create empty toolbox and skillbox tables in AGENT.

After this you have an Oracle that’s ready for the agent. No notebook required.

Seed (idempotent)

python scripts/seed.py

Populates the demo data on top of the bootstrap:

Re-runnable any time to refresh the demo dataset.

Run

Two terminals:

# Terminal 1 — backend
cd app/backend && python app.py
# → backend ready on http://localhost:8000

# Terminal 2 — frontend
cd app/frontend && npm run dev
# → http://localhost:3000

Open http://localhost:3000. Send a message. Watch the right pane fill in.

What you should see

Chat pane (center):

Memory context pane (right):

Five collapsible sections, each one populated after every turn:

Section What’s in it
MSG Recent thread messages Last 10 turns from OAMP for this thread
MEM Top semantic memories What search_knowledge(query) would surface — the agent’s institutional knowledge ranked by similarity to the latest query
TOOL Recent tool outputs Outputs of the last several tool calls on this thread (the same data fetch_tool_output recovers)
SKILL Skill manifest Top-3 from the skillbox — exactly what’s prepended to the system prompt this turn
REG Tool manifest Top-6 tool schemas actually exposed to the LLM this turn (after vector retrieval + always-on merge)

This pane answers the question: “why did the model say what it said?” — every input that landed in its context is on the right.

Starter prompts

Drop these into the chat to exercise different parts of the harness:

Prompt Exercises
“What’s in the SUPPLYCHAIN schema? Briefly list the entities and relationships.” scanner-built institutional knowledge (Part 2)
“How many active voyages does each carrier currently have?” run_sql + simple aggregation
“Which vessels are within 1500 km of Singapore right now?” SDO_WITHIN_DISTANCE against vessel_positions.position
“Pull the lat/long of every in-transit vessel and use exec_js to compute the haversine distance from the fleet’s centroid for each. Tell me the farthest one.” run_sql → exec_js (Oracle MLE)
“Give me the complete document for voyage 7 — vessel, carrier, ports, containers, cargo. Use the duality view if there is one.” get_document("voyage_dv", "7") (JSON Relational Duality)
“Show me all voyages currently in MEDITERRANEAN with cargo above 100k USD declared value.” query_documents("voyage_dv", where=...) + DDS (cargo value masked unless EXECUTIVE)
“How do I diagnose ORA-00904? Consult any guide you have.” load_skill("agent/ora-error-catalog") from the skillbox

Notes
