OraViz MCP

Oracle AI Database, chart-ready. A minimal, visualization-first MCP server. Query, profile, plot.

OraViz MCP is pab1it0/adx-mcp-server reimagined for Oracle AI Database – a deliberately tiny alternative to the broad official Oracle MCP servers. It speaks SQL, profiles tables, and turns result sets into PNG charts any MCP client can show. Seven read-oriented tools, no Oracle client libraries (python-oracledb thin mode talks straight to Oracle AI Database 26ai Free or any newer release).

Two ideas shape everything:

Visualization first. The headline tool runs your query and returns an actual chart image plus a short data preview – not a wall of rows.
Context engineering. Agents pay for every token a tool returns, so OraViz never dumps a result set. Results are preview-capped, rendered as one compact markdown table with a metadata header, and large values (CLOB, BLOB, VECTOR) are summarised. Raw LOBs are never read.

Deploy with a dedicated Oracle reader account. Network transports require verified bearer tokens; stdio uses local OS trust. See SECURITY.md for the security boundaries and deployment checklist.

Visualization at a Glance

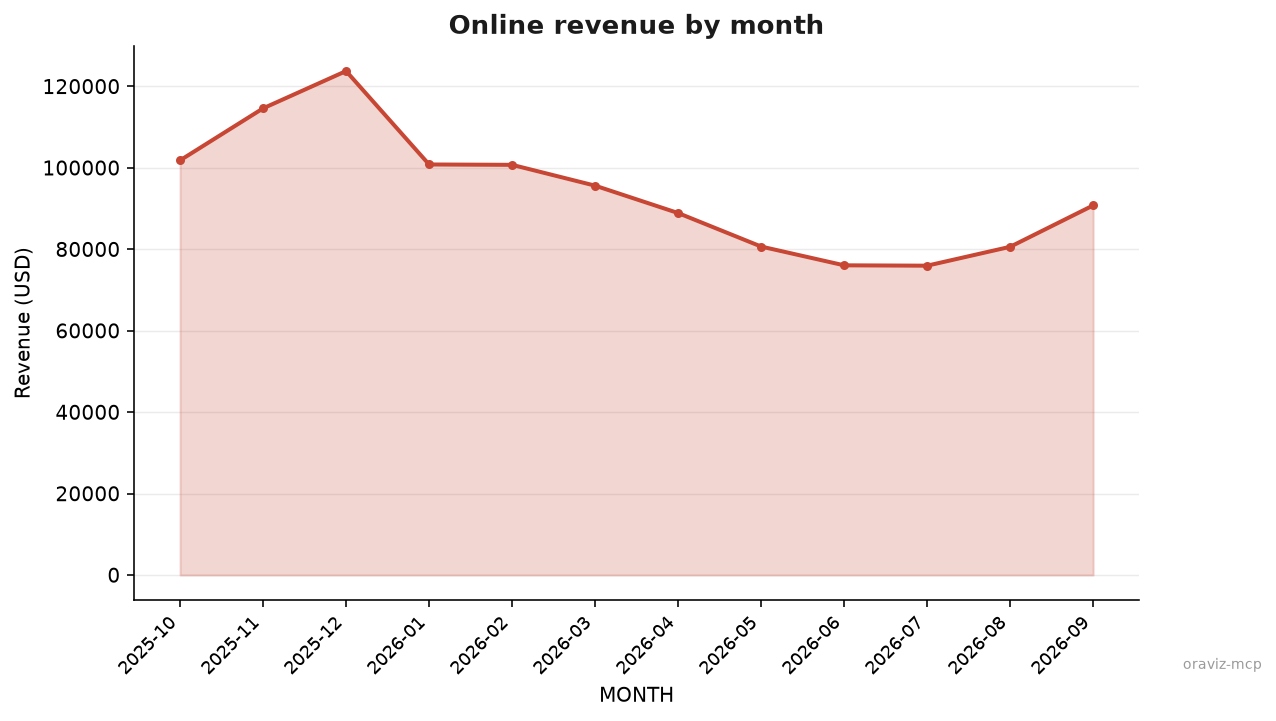

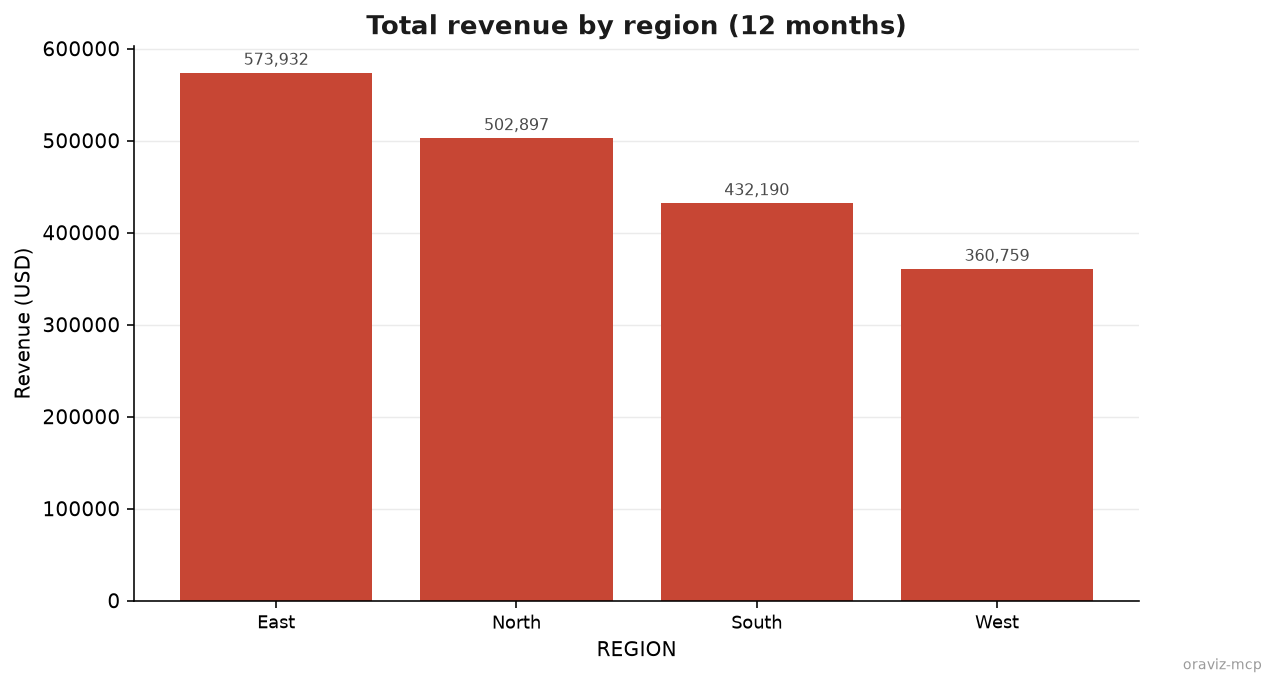

Bar	Area / Line

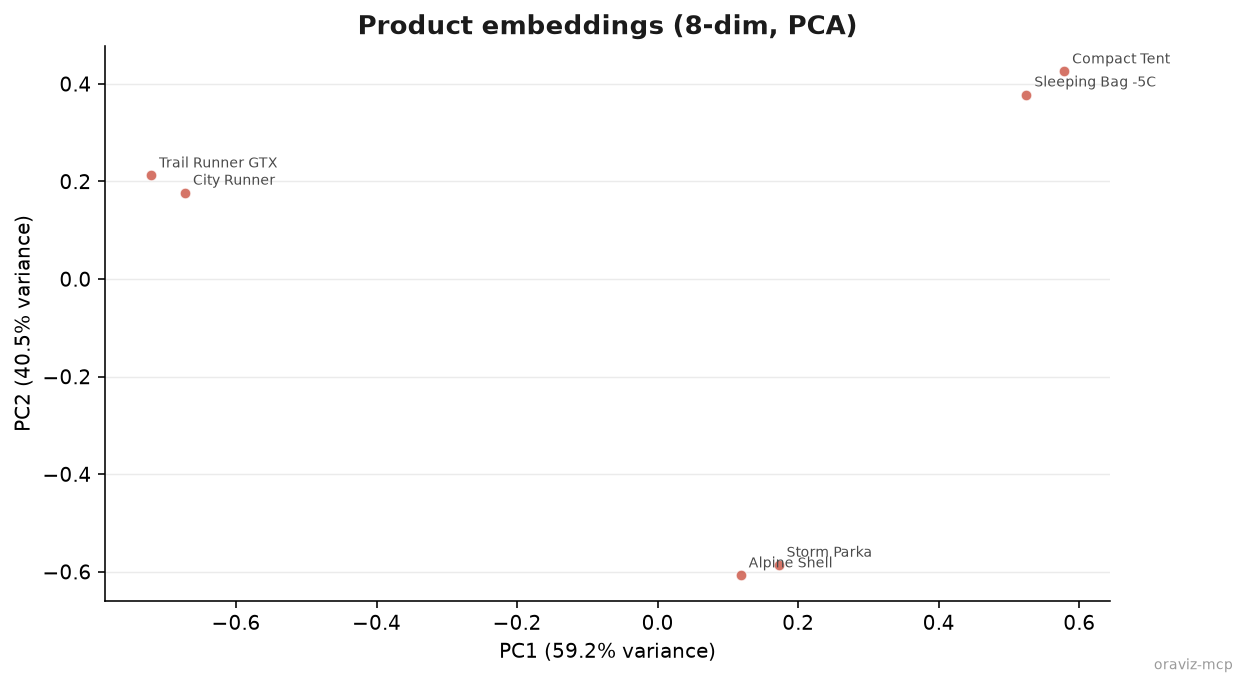

Vector (PCA)
All images were rendered by `create_chart` against the demo schema in `examples/demo-sales.sql`.

Why OraViz?

Charts, not query dumps – create_chart renders bar, line, area, scatter, pie, histogram, and vector (PCA) charts with an Oracle-red palette and returns the PNG as MCP image content.
Context-engineered results – bounded previews with explicit truncated metadata, one header per table instead of repeated JSON keys, CLOB/BLOB/VECTOR summarised, per-cell truncation.
Profile before you plot – profile_table returns per-column nulls, distinct counts, min/max/avg so the model can pick the right chart without fetching rows.
Conservative query admission – one SELECT/WITH with a reviewed built-in function allowlist; unreviewed calls with parentheses, writes, PL/SQL, database links, sequences, and locking are denied. Bare parameterless routines and routines inside views/synonyms can escape lexical detection. Oracle READ grants and review of inherited/PUBLIC execution privileges are essential. ORACLE_CALL_TIMEOUT bounds each database round trip.
Controlled surface – 7 tools with an operator allowlist, strict inputs, bounded concurrency, authenticated network transports, and metadata-only JSON audit logs on stderr (stdout stays clean for stdio).
Zero client install – python-oracledb thin mode; no Oracle Instant Client, no ORACLE_HOME, no tnsnames.

The Context Contract

Every row-returning tool follows the same rules, and the test suite asserts them:

Rule	Default	Env knob
Query preview size (`execute_query` without `max_rows`)	25 rows	`ORACLE_MCP_PREVIEW_ROWS`
Hard row cap per query (charts included)	500 rows	`ORACLE_MCP_MAX_ROWS`
Longest cell before `...` truncation	500 chars	`ORACLE_MCP_MAX_CELL_CHARS`
Database round-trip timeout (not a whole-tool deadline)	60 s; range 1–300, cannot disable	`ORACLE_CALL_TIMEOUT`
Result columns	64; maximum 200	`ORACLE_MCP_MAX_RESULT_COLUMNS`
Combined text + serialized JSON structured content / PNG limit	256,000 characters / 2,000,000 bytes	Fixed
Concurrent tool calls per process	4; range 1–32	`ORACLE_MCP_MAX_CONCURRENT`
Metadata header per result	`<n> row(s) (truncated; more rows exist) \\| columns: A, B`	–

A tool result therefore looks like this instead of a 25-dictionary JSON array:

4 row(s) | columns: REGION, REVENUE

| REGION | REVENUE |
|---|---|
| East | 573932 |
| North | 502897 |
| South | 432190 |
| West | 360759 |

Raw CLOB/NCLOB/BLOB/BFILE locators render as <LOB> without reading their contents; byte values are summarized, VECTOR(384) renders as <VECTOR(384)>, and midnight timestamps as dates. For more rows, pass max_rows explicitly – and the server still stops at the hard cap.

Numeric settings have bounded defaults (at most 5,000 rows and 4,096 characters per cell). Invalid numeric environment settings warn and fall back to defaults. Over-limit MCP responses are rejected, including when a rendered table was already truncated but the combined response exceeds the budget. Data mirrored in text and structured JSON counts in both representations. Row/output caps do not bound database CPU or total execution time; see resource limits.

Tools

Tool	Returns	Context cost
`execute_query`	Read-only SQL result as a compact markdown table (preview-capped)	Bounded by preview cap
`list_tables`	Tables and views in the current (or a given) schema	One small table
`get_table_schema`	Columns, types, length, nullability, primary-key membership	One small table
`sample_table_data`	First rows of a table	`sample_size` (default 10)
`get_table_details`	Owner, tablespace, optimizer stats (`NUM_ROWS`, `LAST_ANALYZED`), optional exact row count	Single row
`profile_table`	Per-column stats: non-null, nulls, distinct, min, max, avg	~1 line per column
`create_chart`	PNG chart image + short data preview	Image + ≤5 preview rows

How `create_chart` maps columns

The first column is the x-axis (or the labels for pie and vector charts); numeric columns after it become series. That makes the chart contract simple and SQL-driven:

SELECT region, ROUND(SUM(revenue), 2) AS revenue
FROM oraviz.sales_demo
GROUP BY region
ORDER BY revenue DESC

create_chart(sql=..., chart_type="bar", title="Revenue by region")

SELECT product_name, embedding FROM oraviz.product_vectors

create_chart(sql=..., chart_type="vector", title="Product embeddings")

bar / line / area – label column plus one or more numeric series (up to 8 series; bar values are annotated when the chart is small)
scatter – first two numeric columns
pie – label column plus one numeric column; more than 12 slices are grouped into “Other”
histogram – the first numeric column, auto-binned
vector – the first VECTOR column is projected to two dimensions with PCA (dense and sparse vectors both work); the first non-vector column labels the points, and each axis names the share of variance its component explains

Quick Start

1. Choose an Oracle AI Database

OraViz connects with python-oracledb thin mode, so it runs against a hosted FreeSQL schema or a local Oracle AI Database 26ai Free container. Pick either path; steps 3 and 4 are the same for both.

Option A – FreeSQL (hosted, no Docker)

FreeSQL gives you a hosted Oracle AI Database 26ai schema at no cost, with the worksheet and the connection details in one place. It is the fastest path to real data for the charts. Sessions keep the Developer Hub program identifier (devrel-developerhub-oraviz-mcp), and no wallet files are needed: python-oracledb thin mode connects over TCPS directly.

Step 1: Open FreeSQL. The worksheet interface is where you browse schema objects, run SQL, and reach the connection details.

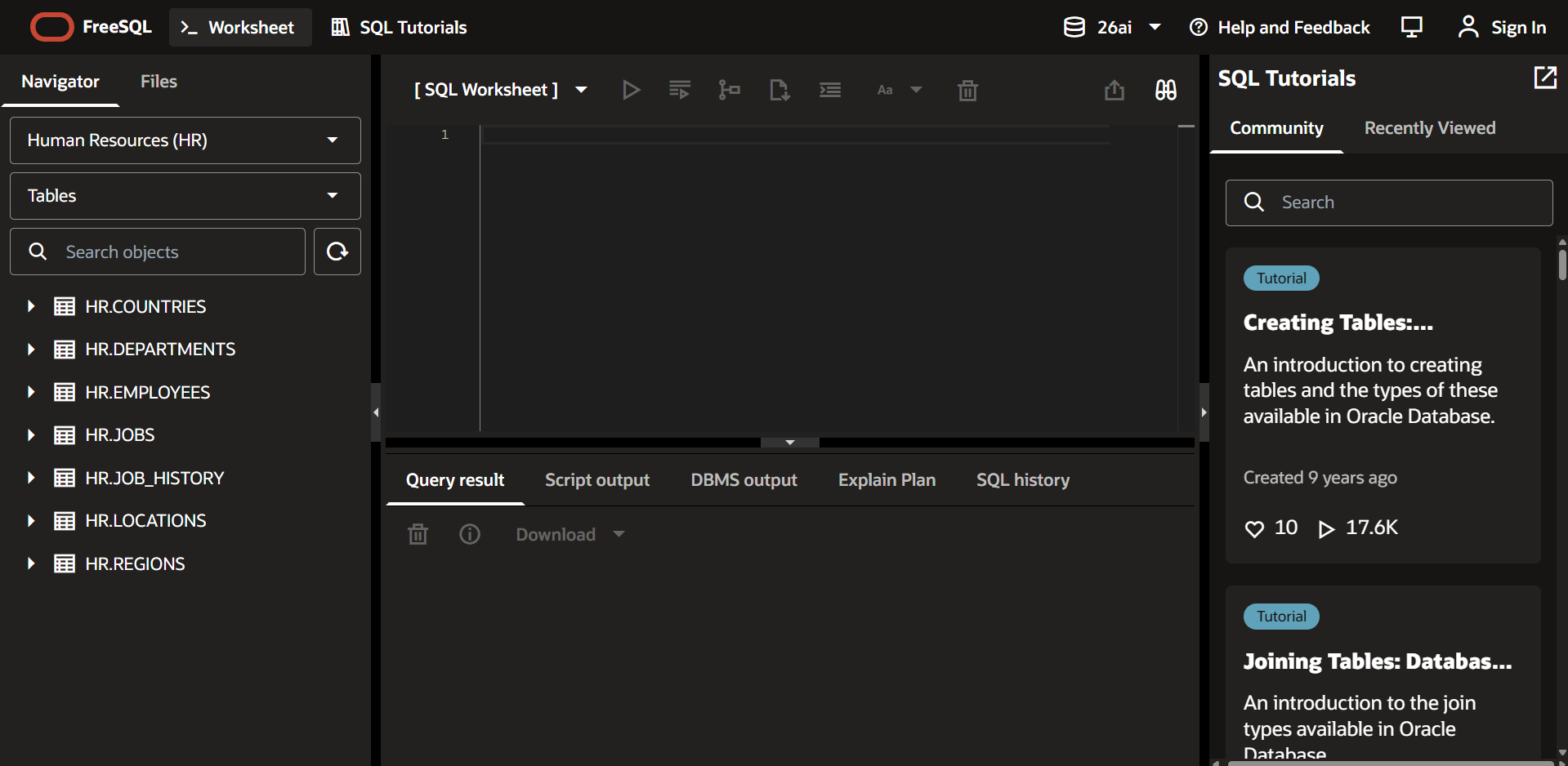

FreeSQL worksheet interface

Step 2: Sign in. Use your Oracle account, or create one from the same page.

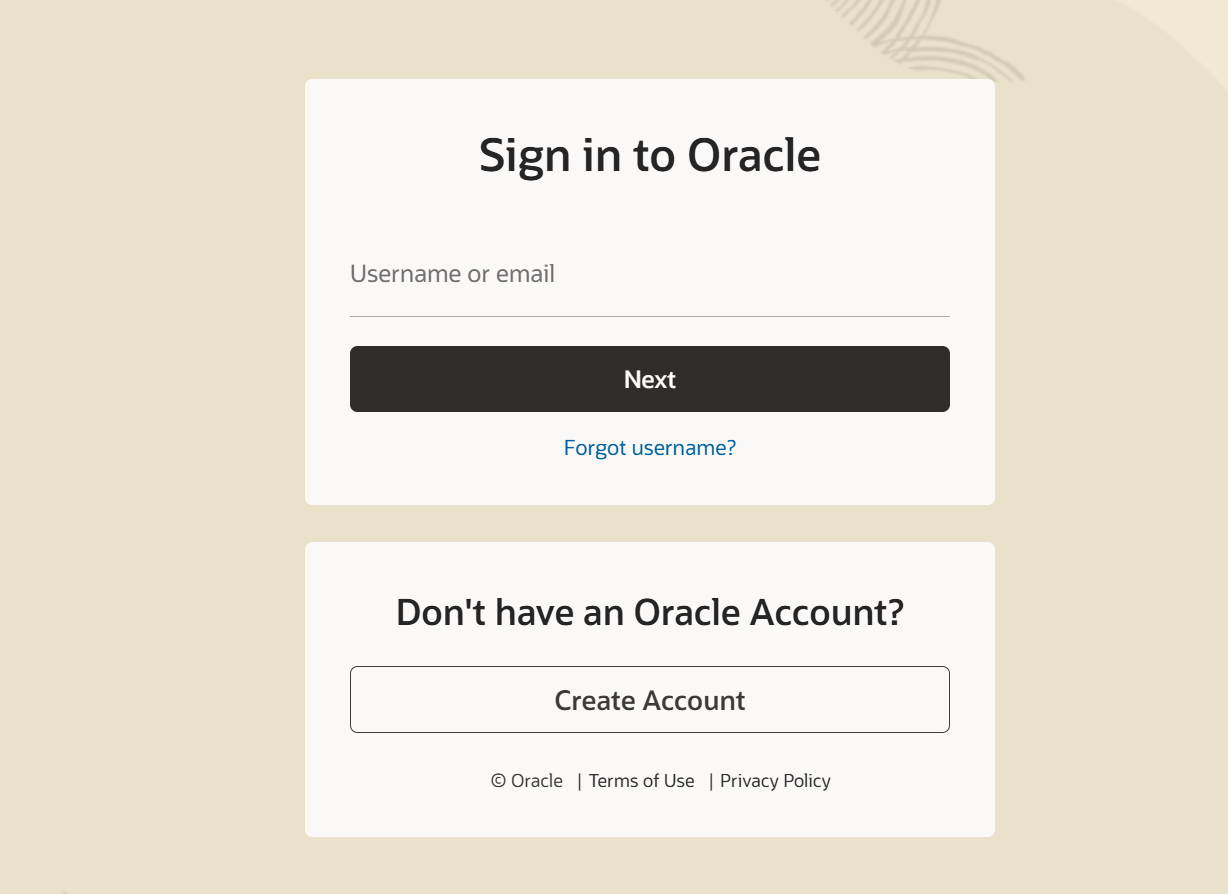

Oracle sign-in page for FreeSQL

Step 3: Copy the Python connection details. Open Connect to the Database and choose the Python tab. FreeSQL shows the host, port, service name, and generated password for your schema:

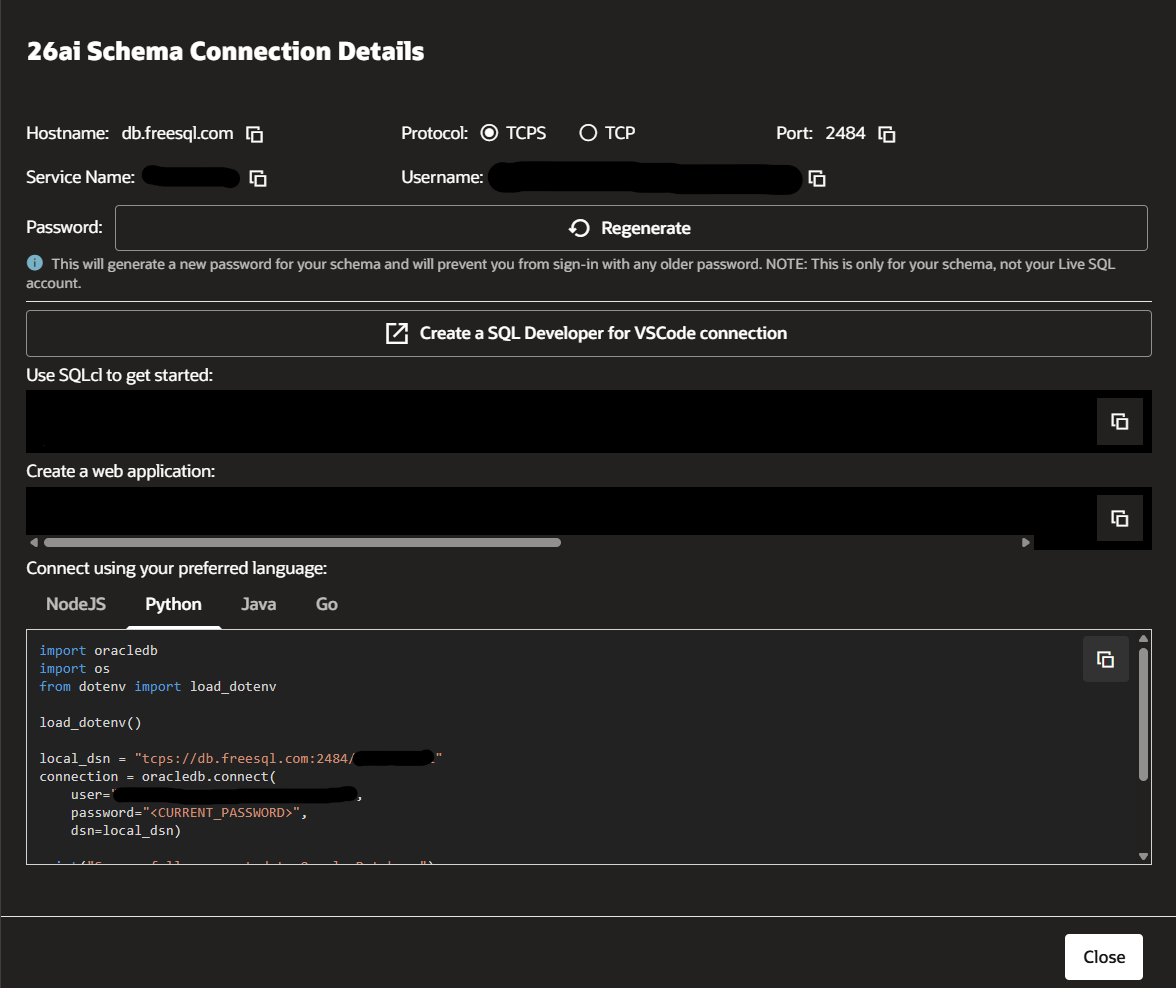

FreeSQL Python connection details

Put those values in the server environment, or in a private .env file (see Configuration):

ORACLE_USER=<freesql-user>
ORACLE_PASSWORD=<freesql-password>
ORACLE_DSN=tcps://db.freesql.com:2484/<freesql-service-name>

The MCP server signs in as the FreeSQL schema user directly; the owner/reader split in Option B is Docker-only.

Option B – Local Oracle AI Database 26ai Free (Docker)

# Disposable local development database; the admin password is NOT the MCP password.
read -rsp 'Database admin password: ' ORAVIZ_DB_ADMIN_PASSWORD
export ORAVIZ_DB_ADMIN_PASSWORD
docker compose up -d
unset ORAVIZ_DB_ADMIN_PASSWORD

The container takes a couple of minutes to initialize. docker ps shows (healthy) when it is ready. The listener is published only on 127.0.0.1:1530. The database stores data in a named volume. The floating database image is for this demo; pin a reviewed digest for controlled deployments.

2. (Optional) Load the demo schema

examples/demo-sales.sql creates the 96-row SALES_DEMO table and the six-row PRODUCT_VECTORS table with an 8-dimension VECTOR column.

FreeSQL: open the worksheet, paste the script, and run it. The tables land in the schema you signed in with – the same schema the MCP server reads – so no extra grants are needed.

Docker: create an owner only for setup, then give a separate reader access to the two demo tables. The SQL below uses password placeholders: replace them privately with separate generated passwords. Do not reuse the legacy passwords or broad grants in the demo script’s historical header.

docker exec -it oraviz-oracle sqlplus -L system@//localhost:1521/FREEPDB1

At the SQL prompt (admin use is limited to provisioning):

CREATE USER oraviz IDENTIFIED BY "REPLACE_WITH_OWNER_SECRET"
  DEFAULT TABLESPACE USERS QUOTA 20M ON USERS;
GRANT CREATE SESSION, CREATE TABLE TO oraviz;
CREATE USER oraviz_reader IDENTIFIED BY "REPLACE_WITH_READER_SECRET";
GRANT CREATE SESSION TO oraviz_reader;
EXIT;

Load the demo tables as the owner. The script drops and recreates these tables; use it only in this disposable schema.

docker cp examples/demo-sales.sql oraviz-oracle:/tmp/oraviz-demo-sales.sql
docker exec -it oraviz-oracle sqlplus -L oraviz@//localhost:1521/FREEPDB1

At the owner SQL prompt:

@/tmp/oraviz-demo-sales.sql
GRANT READ ON oraviz.sales_demo TO oraviz_reader;
GRANT READ ON oraviz.product_vectors TO oraviz_reader;
EXIT;

The initial DROP TABLE statements can report missing tables on a fresh schema. In the Docker setup, only ORAVIZ_READER is used by the MCP server. For production, grant READ on approved tables or reviewed views and audit inherited permissions; never use a schema owner or admin.

3. Point your MCP client at the server

Take ORACLE_USER and ORACLE_DSN from the option you chose (the Docker defaults are shown below) and inject ORACLE_PASSWORD at runtime.

Claude Desktop / Cursor (uvx from a reviewed commit)

Replace `REVIEWED_COMMIT_SHA` with an audited commit ID. Inject `ORACLE_PASSWORD` into the MCP host's protected process environment; it is intentionally absent from the shareable client configuration. ```json { "mcpServers": { "oraviz": { "command": "uvx", "args": ["--from", "git+https://github.com/jasperan/oraviz-mcp@REVIEWED_COMMIT_SHA", "oraviz-mcp"], "env": { "ORACLE_USER": "oraviz_reader", "ORACLE_DSN": "localhost:1530/FREEPDB1" } } } } ```

Local checkout (development)

```json { "mcpServers": { "oraviz": { "command": "uv", "args": ["--directory", "/path/to/oraviz-mcp", "run", "oraviz-mcp"], "env": { "ORACLE_USER": "oraviz_reader", "ORACLE_DSN": "localhost:1530/FREEPDB1" } } } } ```

Docker

```bash docker build -t oraviz-mcp . ``` ```json { "mcpServers": { "oraviz": { "command": "docker", "args": ["run", "--rm", "-i", "--network", "host", "-e", "ORACLE_USER", "-e", "ORACLE_PASSWORD", "-e", "ORACLE_DSN", "oraviz-mcp"], "env": { "ORACLE_USER": "oraviz_reader", "ORACLE_DSN": "localhost:1530/FREEPDB1" } } } } ``` `--network host` is a Linux local-demo convenience for reaching the loopback database. For a deployment, use a dedicated private network and restrict egress as described in [SECURITY.md](/oracle-ai-developer-hub/apps/oraviz-mcp/SECURITY.html). Inject the reader password at runtime, and use a reviewed image digest when distributing the image.

4. Ask for a chart

“Profile ORAVIZ.SALES_DEMO, then chart total revenue by region from ORAVIZ.SALES_DEMO.”

The model will call profile_table, pick a chart type, run create_chart, and you get a rendered image back.

Configuration

Variable	Description	Default
`ORACLE_USER`	Dedicated reader with `CREATE SESSION` and object `READ` grants (required); known admins rejected	–
`ORACLE_PASSWORD`	Password for the user (required)	–
`ORACLE_HOST`	Database hostname	`localhost`
`ORACLE_PORT`	Listener port	`1521`
`ORACLE_SERVICE`	Service name	`FREEPDB1`
`ORACLE_DSN`	Full EZConnect descriptor or connect string (FreeSQL: `tcps://db.freesql.com:2484/<service>`); overrides host/port/service	–
`ORACLE_CONFIG_DIR`	Wallet config directory (Autonomous Database / mTLS)	–
`ORACLE_WALLET_LOCATION`	Wallet location	–
`ORACLE_WALLET_PASSWORD`	Wallet password	–
`ORACLE_MCP_PREVIEW_ROWS`	Preview size, 1–5,000, also capped by max rows	`25`
`ORACLE_MCP_MAX_ROWS`	Hard row cap per query, 1–5,000	`500`
`ORACLE_MCP_MAX_CELL_CHARS`	Per-cell truncation limit, 1–4,096	`500`
`ORACLE_MCP_MAX_RESULT_COLUMNS`	Result column cap, 1–200	`64`
`ORACLE_MCP_MAX_CONCURRENT`	Admitted calls per process, 1–32	`4`
`ORACLE_MCP_ALLOWED_TOOLS`	Comma-separated exact names from the seven tools above; empty/unknown entries reject startup	All seven
`ORACLE_CONNECT_TIMEOUT`	TCP connect timeout, seconds	`10`
`ORACLE_CALL_TIMEOUT`	Per database round-trip timeout, seconds, 1–300; cannot disable	`60`
`ORACLE_MCP_SERVER_TRANSPORT`	`stdio` (default), `http`, `sse`, `streamable-http`	`stdio`
`ORACLE_MCP_BIND_HOST`	Bind host for network transports	`127.0.0.1`
`ORACLE_MCP_BIND_PORT`	Bind port for network transports	`8080`
`ORACLE_MCP_AUTH_ISSUER`	Required network JWT issuer, HTTPS URL	–
`ORACLE_MCP_AUTH_AUDIENCE`	Required network JWT resource audience	–
`ORACLE_MCP_AUTH_JWKS_URL`	Required network signing-key endpoint, HTTPS URL	–
`ORACLE_MCP_AUTH_REQUIRED_SCOPES`	Required network scopes, space-separated (e.g. `oraviz:read`)	–
`ORACLE_MCP_AUTH_BASE_URL`	Optional public HTTPS base URL for discovery, excluding `/mcp` and `/sse`	–
`LOG_FORMAT`	`json` (default) or `console` for human-readable logs	`json`
`LOG_LEVEL`	structlog level number	`20` (INFO)

Copy .env.template to .env with umask 077 – the server loads it via python-dotenv. Keep it untracked, never source it as shell code, and use process environment injection for literal secrets containing ${...}. Existing process environment settings take precedence.

All network transports (http, sse, streamable-http) require auth, including loopback and proxy use. Bearer tokens need a valid RS256 signature, issuer, audience, expiry, nonempty signed sub, applicable nbf, and required scopes. All authenticated users share the configured Oracle principal; this is not per-user or multitenant data authorization. TLS, private networking, gateway limits, audit retention, and host approval for sensitive reads/exports remain deployment responsibilities. See the network configuration example.

Architecture

oraviz-mcp
  src/oraviz_mcp/
    server.py          # FastMCP app, config, Oracle client, validation, the 7 tools
    charts.py          # pure matplotlib rendering (bar/line/area/scatter/pie/histogram/vector -> PNG bytes)
    main.py            # entry point: env validation, transport selection
  tests/
    test_config.py     # config dataclasses + env parsing
    test_validation.py # SQL guard, identifiers, formatting, result rendering
    test_charts.py     # every chart type + validation errors
    test_server_tools.py  # all tools against a scripted fake cursor
    test_main.py       # entry point
    integration/       # live Oracle tests (skipped without ORAVIZ_TEST_DSN)
  examples/demo-sales.sql
  docs/testing.md

Data flow: the MCP client calls a tool -> server.py validates (validate_query / validate_table_name) -> python-oracledb thin connection -> rows are narrowed (fetch cap) -> either rendered as a compact table (render_rows) or handed to charts.py -> the model receives text, or an image plus a short preview.

Development

uv sync --extra dev          # install everything (matplotlib, fastmcp, oracledb, pytest)
uv run pytest                # hermetic unit suite (~98% line coverage; the 90% gate is enforced)
uv run pytest -k chart       # focus on one area

# Live tests create/drop scratch objects: use a separate disposable test owner,
# not the MCP reader. Inject ORAVIZ_TEST_PASSWORD privately before this command.
ORAVIZ_TEST_DSN=localhost:1530/FREEPDB1 \
ORAVIZ_TEST_USER=oraviz \
uv run pytest tests/integration -v --no-cov

docker build -t oraviz-mcp . # container build (multi-stage, non-root)

See docs/testing.md and tests/README.md for the testing story.

OraViz vs. the official Oracle MCP servers

Oracle ships rich, general-purpose MCP servers – SQLcl’s built-in MCP server (run-sql, connect, schema-information, …), ORDS MCP, the OCI Database Tools MCP, and the reference servers in oracle/mcp. Use those when you need breadth: DDL, transactions, RAC, RAG pipelines.

OraViz is the opposite bet: seven tools, read-only SQL, and a hard focus on turning data into pictures without flooding the model’s context. If you want the database operated, use the official servers. If you want the database seen, use this one.

Benchmarks

Historical snapshot: the numbers and figures below were captured before security hardening. They are retained unchanged and have not been recomputed for the current schemas or limits. Current guarantees and limitations are in SECURITY.md.

We measured the tokens an agent must process to answer the same questions through OraViz and through the official SQLcl MCP server, against the same 26ai Free database (tiktoken cl100k_base: tool schemas plus every tool result):

Stage	OraViz	SQLcl MCP	Savings
Tool schemas (read once per session)	862	2,139	59.7%
Schema discovery	69	354	80.5%
Full 96-row dump	825	2,136	61.4%
Whole workflow (5 questions)	2,337	5,006	53.3%

The 10-row sample step trades ~55% more framing tokens than raw CSV, and that overhead cannot grow with the result size. Rendering the aggregate as a chart costs 123 text tokens plus the PNG image. Full methodology, step-by-step numbers, and reproduction commands: benchmarks/. A live showcase with the end-to-end query demo is at jasperan.github.io/oraviz-mcp.

Credits

pab1it0/adx-mcp-server – the project this mirrors, tool for tool, for Oracle
Oracle AI Database 26ai Free – the database and its container image
FreeSQL – hosted Oracle AI Database schema for the Docker-free path
python-oracledb – thin-mode driver, no client libraries required
FastMCP and the Model Context Protocol

License

MIT – see LICENSE.
