An intelligent RAG (Retrieval Augmented Generation) system that uses an LLM agent to make decisions about information retrieval and response generation. The system processes PDF documents and can intelligently decide which knowledge base to query based on the user’s question.

The system has the following features:
gemma3:270m via Ollama



Here you can find a result of using Chain of Thought (CoT) reasoning:

ollama pull gemma3:270m
ollama pull qwen2.5-coder:7b
ollama pull deepseek-r1:1.5b
Clone the repository and install dependencies:
git clone https://github.com/oracle-devrel/ai-solutions.git
cd ai-solutions/apps/agentic_rag
pip install -r requirements.txt
Start the Ollama service
Pull the models you want to use beforehand:
ollama pull gemma3:270m
You can launch this solution in three ways:
Start the API server:
# Option 1: Start the CLI (Command Line Interface)
python agent_cli.py
# Option 2: Start the GUI (Gradio Interface)
python gradio_app.py
# Alternative: Start the API server directly
python -m src.main
The API will be available at http://localhost:8000. You can then use the API endpoints as described in the API Endpoints section below.

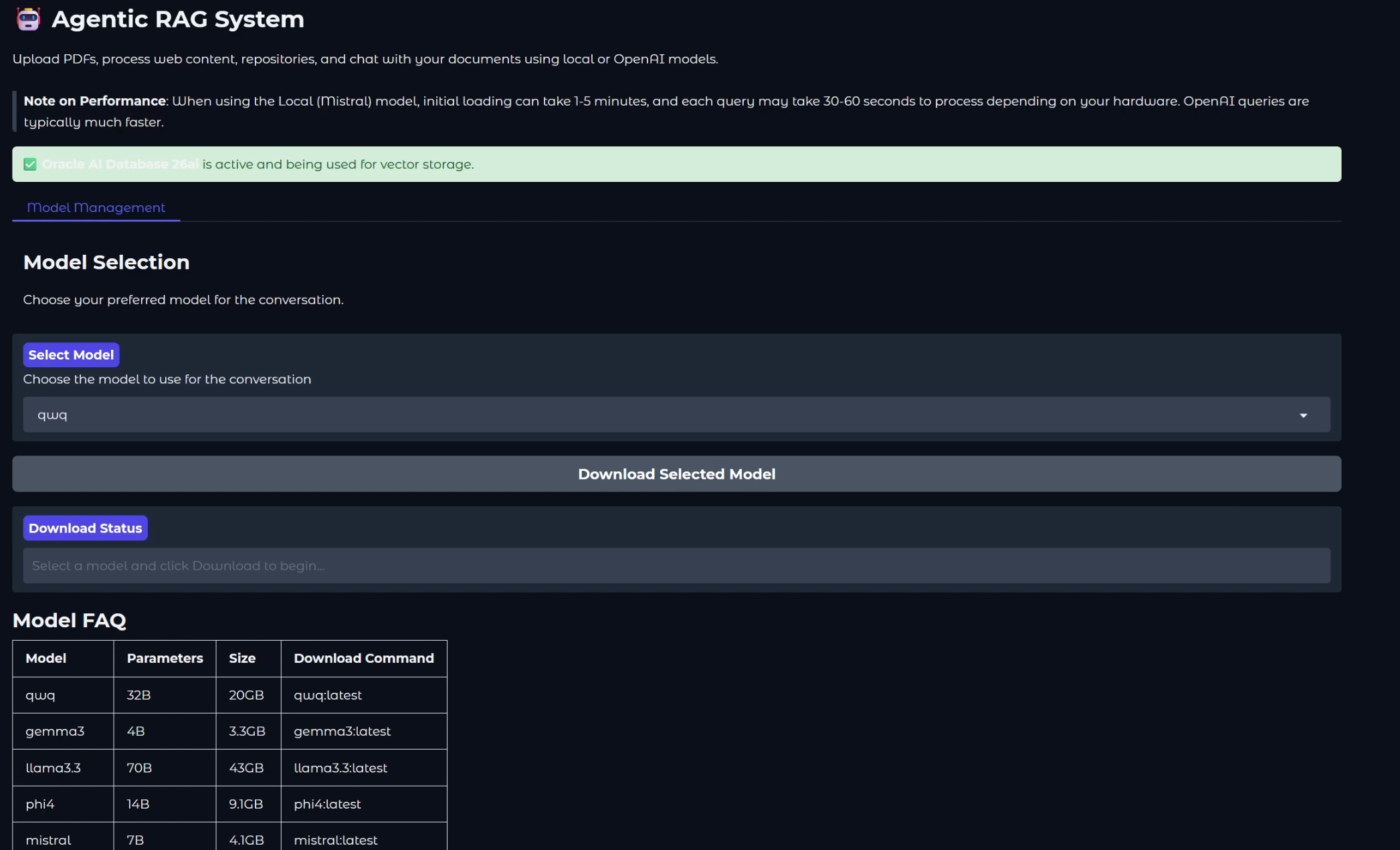

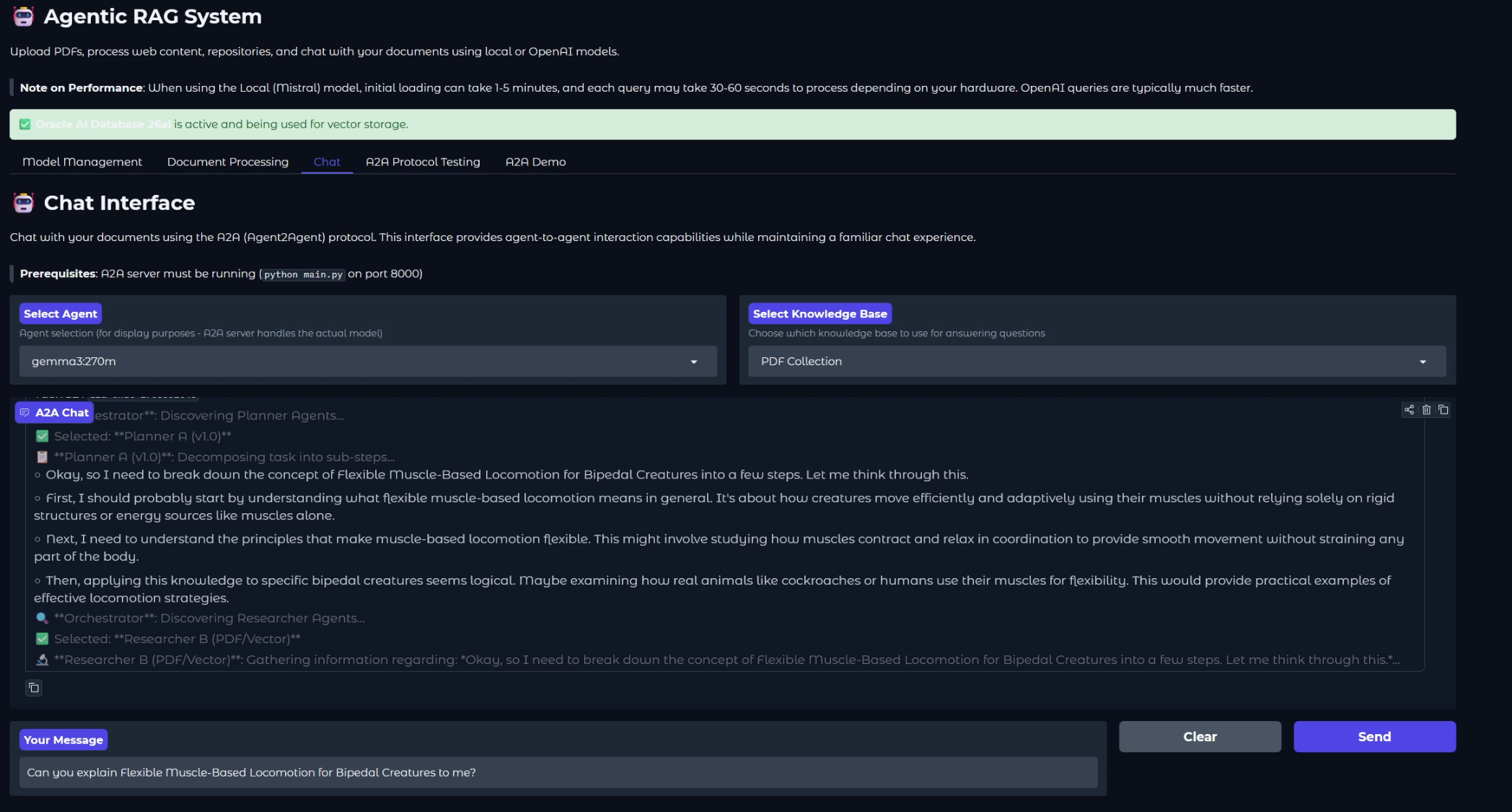

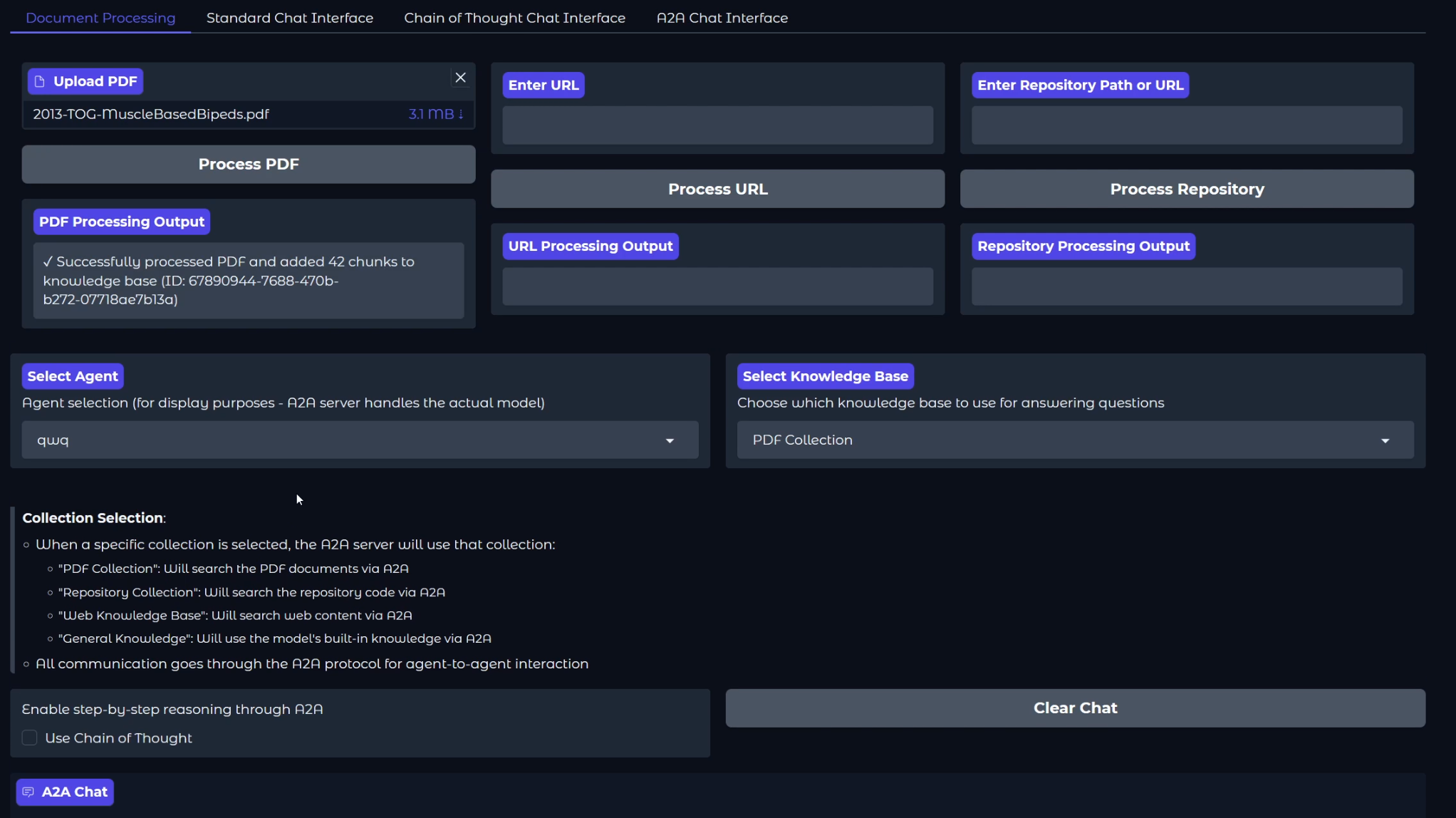

The system provides a user-friendly web interface using Gradio, which allows you to:
ollama models directly from the interfaceTo launch the interface:
python gradio_app.py
This will start the Gradio server and automatically:
http://localhost:7860The interface has two main tabs:
Note: The interface will automatically detect available models based on your configuration:
The easiest way to use the system is through the interactive CLI:
python agent_cli.py
Interactive Experience:
╭──────────────────────────────────────────────╮
│ AGENTIC RAG SYSTEM CLI │
│ Oracle AI Vector Search + Ollama (Gemma 3) │
╰──────────────────────────────────────────────╯
? Select a Task:
Process PDFs
Process Websites
Manage Vector Store
Test Oracle DB
Chat with Agent (RAG)
Exit
Features:
gemma3:270m (Ollama).If you prefer to run individual components manually:
To process a PDF file and save the chunks to a JSON file, run:
# Process a single PDF
python -m src.pdf_processor --input path/to/document.pdf --output chunks.json
# Process multiple PDFs in a directory
python -m src.pdf_processor --input path/to/pdf/directory --output chunks.json
# Process a single PDF from a URL
python -m src.pdf_processor --input https://example.com/document.pdf --output chunks.json
# sample pdf: https://arxiv.org/pdf/2203.06605
Process a single website and save the content to a JSON file:
python -m src.web_processor --input https://example.com --output docs/web_content.json
Or, process multiple URLs from a file and save them into a single JSON file:
python -m src.web_processor --input urls.txt --output docs/web_content.json
To add documents to the vector store and query them, run:
# Add documents from a chunks file, by default to the pdf_collection
python -m src.store --add chunks.json
# for websites, use the --add-web flag
python -m src.store --add-web docs/web_content.json
# Query the vector store directly, both pdf and web collections
# llm will make the best decision on which collection to query based upon your input
python -m src.store --query "your search query"
python -m src.local_rag_agent --query "your search query"
The system includes a test script to verify Oracle DB connectivity and examine the contents of your collections. This is useful for:
To run the test:
# Basic test - checks connection and runs a test query
python tests/test_oradb.py
# Show only collection statistics without inserting test data
python tests/test_oradb.py --stats-only
# Specify a custom query for testing
python tests/test_oradb.py --query "artificial intelligence"
The script will:
config.yaml file--stats-only, insert test data and run a sample vector searchRequirements:
config.yaml:
ORACLE_DB_USERNAME: ADMIN
ORACLE_DB_PASSWORD: your_password_here
ORACLE_DB_DSN: your_connection_string_here
oracledb Python package installedTo query documents using the local Ollama model, run:
# Using local ollama model (gemma3:270m by default)
python -m src.local_rag_agent --query "Can you explain the DaGAN Approach proposed in the Depth-Aware Generative Adversarial Network for Talking Head Video Generation article?"
First, we process a document and query it using the local model. Then, we add the document to the vector store and query from the knowledge base to get the RAG system in action.
# 1. Process the PDF
python -m src.pdf_processor --input example.pdf --output chunks.json
#python -m src.pdf_processor --input https://arxiv.org/pdf/2203.06605 --output chunks.json
# 2. Add to vector store
python -m src.store --add chunks.json
# 3. Query using local model
python -m src.local_rag_agent --query "Can you explain the DaGAN Approach proposed in the Depth-Aware Generative Adversarial Network for Talking Head Video Generation article?"
You can deploy the application using Docker. This ensures a consistent environment with all dependencies pre-installed.
docker build --network=host -t agentic-rag .
# Recommended for Linux (bypasses Docker network/DNS issues)
docker run -d \
--network=host \
--gpus all \
--name agentic-rag \
agentic-rag
# Alternative (Port mapping)
# Note: May require DNS configuration if container cannot access host/internet
# docker run -d \
# --gpus all \
# -p 7860:7860 \
# -p 11434:11434 \
# --name agentic-rag \
# agentic-rag
Note: The --gpus all flag requires the NVIDIA Container Toolkit. If you don’t have a GPU, the application will run in CPU-only mode (slower), and you can omit this flag.
http://localhost:7860http://localhost:11434For Kubernetes deployment, we provide a comprehensive set of manifests and scripts in the k8s/ directory.
kubectl configuredcd k8s
# Deploy to default namespace
./deploy.sh
# Or deploy with a specific Hugging Face token (if needed)
./deploy.sh --hf-token "your-token"
kubectl apply -f k8s/local-deployment/
For detailed Kubernetes instructions, including OKE (Oracle Kubernetes Engine) and Minikube, please refer to the Kubernetes README.
The system implements an advanced multi-agent Chain of Thought system, allowing complex queries to be broken down and processed through multiple specialized agents. This feature enhances the reasoning capabilities of both local and cloud-based models.
The CoT system consists of four specialized agents:
You can activate the multi-agent CoT system in several ways:
# Using local gemma3:270m model (default)
python local_rag_agent.py --query "your query" --use-cot
# Test with local model (default)
python tests/test_new_cot.py
{ “query”: “your query”, “use_cot”: true }
### Example Output
When CoT is enabled, the system will show:
- The initial plan for answering the query
- Research findings for each step
- Reasoning process and conclusions
- Final synthesized answer
- Sources used from the knowledge base
Example:
Step 1: Planning
Step 2: Research [Research findings for each step…]
Step 3: Reasoning [Logical analysis and conclusions…]
Final Answer: [Comprehensive response synthesized from all steps…]
Sources used:
The multi-agent CoT approach offers several advantages:
POST /upload/pdf
Content-Type: multipart/form-data
file: <pdf-file>
This endpoint uploads and processes a PDF file, storing its contents in the vector database.
POST /query
Content-Type: application/json
{
"query": "your question here"
}
This endpoint processes a query through the agentic RAG pipeline and returns a response with context.

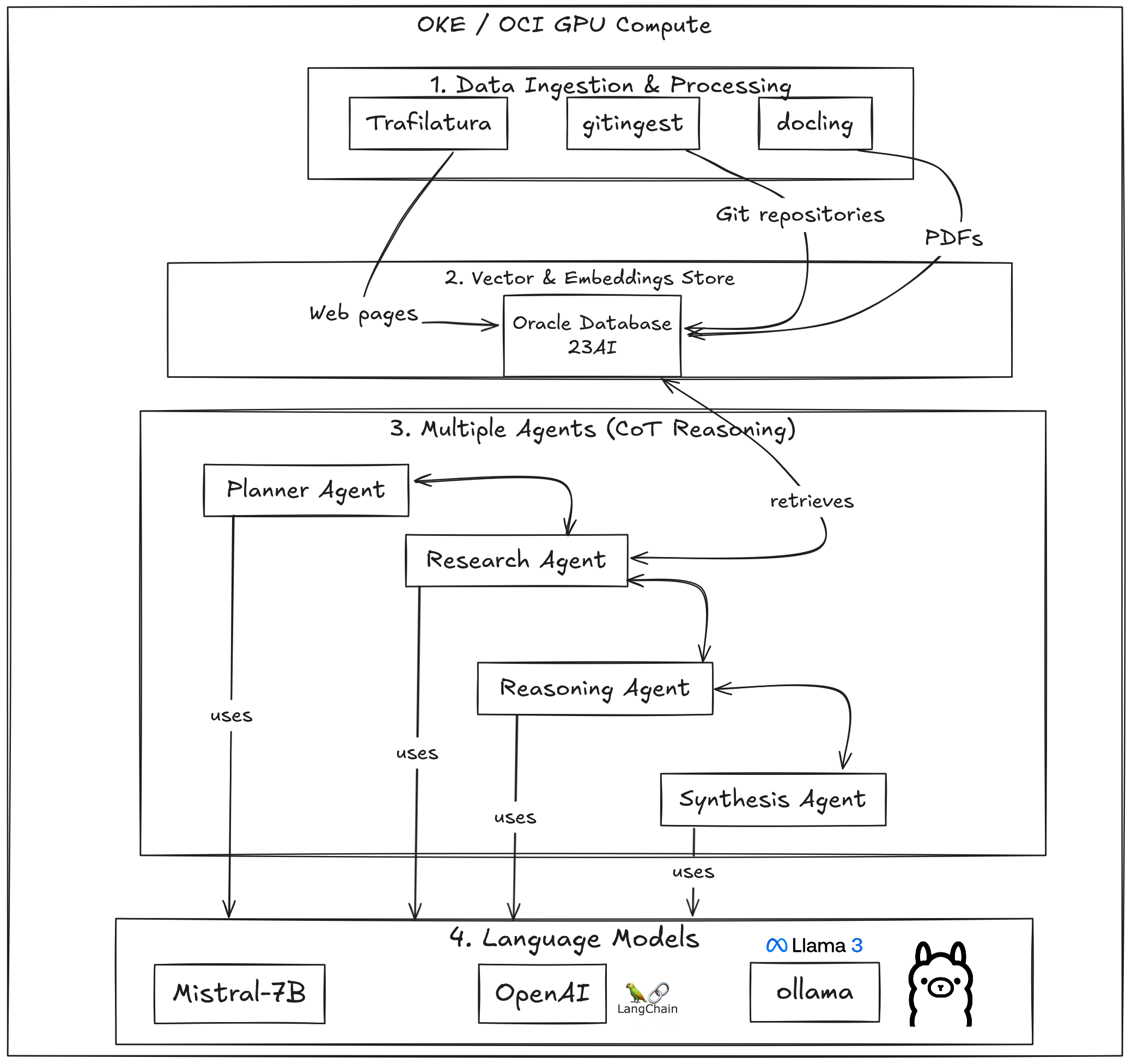

The system consists of several key components:
docling to extract and chunk text from PDF documentstrafilatura to extract and chunk text from websitesgitingest to extract and chunk text from repositoriesOracle AI Database 26ai (default) or ChromaDB (fallback)gemma3:270m via Ollama as the default local modelThe RAG Agent flow is the following:
You can run the system from the command line using:
python -m src.local_rag_agent --query "Your question here" [options]
| Argument | Description | Default |
|---|---|---|
--query |
The query to process | Required |
--embeddings |
Select embeddings backend (oracle or chromadb) |
oracle |
--model |
Model to use for inference | gemma3:270m |
--collection |
Collection to query (PDF, Repository, Web, General) | Auto-determined |
--use-cot |
Enable Chain of Thought reasoning | False |
--store-path |
Path to ChromaDB store (if using ChromaDB) | embeddings |
--skip-analysis |
Skip query analysis step | False |
--verbose |
Show full content of sources | False |
--quiet |
Disable verbose logging | False |
Query using Oracle DB (default):
python -m src.local_rag_agent --query "How does vector search work?"
Force using ChromaDB:
python -m src.local_rag_agent --query "How does vector search work?" --embeddings chromadb
Query with Chain of Thought reasoning:
python -m src.local_rag_agent --query "Explain the difference between RAG and fine-tuning" --use-cot
Query a specific collection:
python -m src.local_rag_agent --query "How to implement a queue?" --collection "Repository Collection"
Real Vector Retrieval: Shows actual retrieved content from the knowledge base during the Research phase, not just final answers.

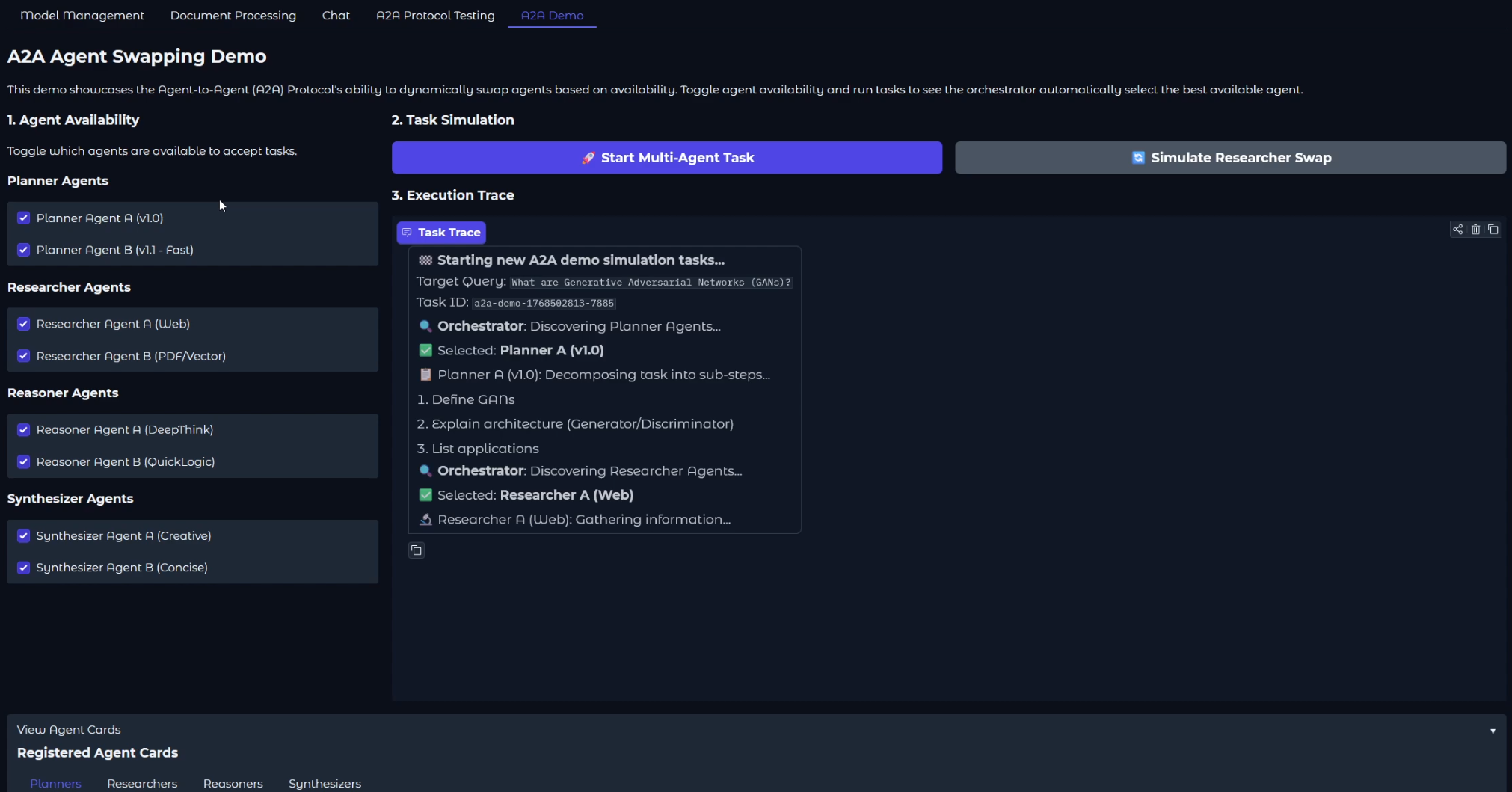

Test the Agent2Agent (A2A) protocol functionality.
ollama pull.Note: The interface will automatically detect available models based on your configuration:
gemma3:270mis the default option (requires Ollama to be installed and running).- Other Ollama models can be selected if available.
- A2A testing requires the A2A server to be running separately.
The agentic_rag system now includes full support for the Agent2Agent (A2A) protocol, enabling seamless communication and collaboration with other AI agents. This integration transforms the system into an interoperable agent that can participate in multi-agent workflows and ecosystems.
The system implements a distributed multi-agent Chain of Thought (CoT) architecture where each specialized agent can run on separate servers and communicate via the A2A protocol. This enables:
┌─────────────────────────────────────────────────────────────────────┐
│ User Query via Gradio │
└────────────────────────────┬────────────────────────────────────────┘
│
▼
┌──────────────────────┐
│ A2A Orchestrator │
│ (localhost:8000) │
└──────────────────────┘
│
┌────────────────┼────────────────┐
│ │ │
▼ ▼ ▼
┌─────────────────┐ ┌─────────────────┐ ┌─────────────────┐
│ Planner Agent │ │Researcher Agent │ │ Reasoner Agent │
│ Agent ID: │ │ Agent ID: │ │ Agent ID: │
│planner_agent_v1 │ │researcher_a_v1 │ │reasoner_a_v1 │
│ │ │ │ │ │
│ URL: http:// │ │ URL: http:// │ │ URL: http:// │
│ localhost:8000 │ │ localhost:8000 │ │ localhost:8000 │
│ OR │ │ OR │ │ OR │
│ server1:8001 ◄──┼──► server2:8002 ◄──┼──► server3:8003 │
└─────────────────┘ └─────────────────┘ └─────────────────┘
│
▼
┌─────────────────┐
│Synthesizer Agent│
│ Agent ID: │
│synthesizer_a_v1 │
│ │
│ URL: http:// │
│ localhost:8000 │
│ OR │
│ server4:8004 │
└─────────────────┘
│
▼
┌──────────────────┐
│ Final Answer │
│ to User │
└──────────────────┘
{base_url}/a2a + agent_idhttp://server1:8001/a2a{"method": "agent.query", "params": {"agent_id": "planner_agent_v1", ...}}To deploy agents on different servers, update config.yaml:
AGENT_ENDPOINTS:
planner_url: http://server1.example.com:8001
researcher_url: http://server2.example.com:8002
reasoner_url: http://server3.example.com:8003
synthesizer_url: http://server4.example.com:8004
Local Development (default):
AGENT_ENDPOINTS:
planner_url: http://localhost:8000
researcher_url: http://localhost:8000
reasoner_url: http://localhost:8000
synthesizer_url: http://localhost:8000
Each specialized agent has its own agent card describing its capabilities:
| Agent ID | Name | Role | Capability |
|---|---|---|---|
planner_agent_v1 |
Strategic Planner | Problem decomposition | Breaks queries into 3-4 actionable steps |
researcher_agent_v1 |
Information Researcher | Knowledge gathering | Searches vector stores and extracts findings |
reasoner_agent_v1 |
Logic & Reasoning | Logical analysis | Applies reasoning to draw conclusions |
synthesizer_agent_v1 |
Information Synthesizer | Response generation | Combines steps into coherent final answer |
Enhanced Interoperability: The A2A protocol enables the agentic_rag system to communicate with other AI agents using a standardized protocol, breaking down silos between different AI systems and frameworks.
Scalable Multi-Agent Workflows: By implementing A2A, the system can participate in complex multi-agent workflows where different agents handle specialized tasks (document processing, analysis, synthesis) and collaborate to solve complex problems.
Industry Standard Compliance: A2A is an open standard developed by Google, ensuring compatibility with other A2A-compliant agents and future-proofing the system.
Enterprise-Grade Security: A2A includes built-in security mechanisms including authentication, authorization, and secure communication protocols.
Agent Discovery: The protocol enables automatic discovery of other agents and their capabilities, allowing for dynamic agent composition and task delegation.
The A2A implementation consists of several key components:
a2a_models.py): Pydantic models for JSON-RPC 2.0 communicationa2a_handler.py): Main request handler and method routertask_manager.py): Long-running task execution and status trackingagent_registry.py): Agent discovery and capability managementagent_card.py): Capability advertisement and metadataThe system supports the following A2A protocol methods:
document.query: Query documents using RAG with intelligent routingdocument.upload: Process and store documents in vector databaseagent.query: NEW - Query specialized CoT agents (Planner, Researcher, Reasoner, Synthesizer) for distributed reasoningtask.create: Create long-running tasks for complex operationstask.status: Check status of running taskstask.cancel: Cancel running tasksagent.discover: Discover other agents and their capabilitiesagent.register: Register new agents with the A2A registryagent.card: Get agent capability informationhealth.check: System health and status checkThe system exposes the following A2A endpoints:
POST /a2a: Main A2A protocol endpoint for agent communicationGET /agent_card: Get the agent’s capability cardGET /a2a/health: A2A health check endpoint# Query documents via A2A protocol
curl -X POST http://localhost:8000/a2a \
-H "Content-Type: application/json" \
-d '{
"jsonrpc": "2.0",
"method": "document.query",
"params": {
"query": "What is machine learning?",
"collection": "PDF",
"use_cot": true
},
"id": "1"
}'
# Create a long-running task
curl -X POST http://localhost:8000/a2a \
-H "Content-Type: application/json" \
-d '{
"jsonrpc": "2.0",
"method": "task.create",
"params": {
"task_type": "document_processing",
"params": {
"document": "large_document.pdf",
"chunk_count": 100
}
},
"id": "2"
}'
# Check task status
curl -X POST http://localhost:8000/a2a \
-H "Content-Type: application/json" \
-d '{
"jsonrpc": "2.0",
"method": "task.status",
"params": {
"task_id": "task-id-from-previous-response"
},
"id": "3"
}'
# Discover agents with specific capabilities
curl -X POST http://localhost:8000/a2a \
-H "Content-Type: application/json" \
-d '{
"jsonrpc": "2.0",
"method": "agent.discover",
"params": {
"capability": "document.query"
},
"id": "4"
}'
# Discover specialized CoT agents
curl -X POST http://localhost:8000/a2a \
-H "Content-Type: application/json" \
-d '{
"jsonrpc": "2.0",
"method": "agent.discover",
"params": {
"capability": "agent.query"
},
"id": "5"
}'
# Get agent card
curl -X GET http://localhost:8000/agent_card
# Query the Planner Agent
curl -X POST http://localhost:8000/a2a \
-H "Content-Type: application/json" \
-d '{
"jsonrpc": "2.0",
"method": "agent.query",
"params": {
"agent_id": "planner_agent_v1",
"query": "How does machine learning work?"
},
"id": "6"
}'
# Query the Researcher Agent
curl -X POST http://localhost:8000/a2a \
-H "Content-Type: application/json" \
-d '{
"jsonrpc": "2.0",
"method": "agent.query",
"params": {
"agent_id": "researcher_agent_v1",
"query": "How does machine learning work?",
"step": "Understand the basic concept of ML"
},
"id": "7"
}'
# Query the Reasoner Agent
curl -X POST http://localhost:8000/a2a \
-H "Content-Type: application/json" \
-d '{
"jsonrpc": "2.0",
"method": "agent.query",
"params": {
"agent_id": "reasoner_agent_v1",
"query": "How does machine learning work?",
"step": "Analyze the key components",
"context": [{"content": "Research findings about ML algorithms..."}]
},
"id": "8"
}'
# Query the Synthesizer Agent
curl -X POST http://localhost:8000/a2a \
-H "Content-Type: application/json" \
-d '{
"jsonrpc": "2.0",
"method": "agent.query",
"params": {
"agent_id": "synthesizer_agent_v1",
"query": "How does machine learning work?",
"reasoning_steps": [
"ML is a subset of AI...",
"It uses algorithms to learn from data...",
"Key components include training and inference..."
]
},
"id": "9"
}'
The A2A implementation includes comprehensive tests covering all functionality:
# Run all A2A tests
python tests/run_a2a_tests.py
# Run specific test categories
python -m pytest tests/test_a2a.py::TestA2AModels -v
python -m pytest tests/test_a2a.py::TestA2AHandler -v
python -m pytest tests/test_a2a.py::TestTaskManager -v
python -m pytest tests/test_a2a.py::TestAgentRegistry -v
The test suite includes:
The system publishes its capabilities through agent cards. There is a main agent card for the RAG system and individual cards for each specialized CoT agent:
{
"agent_id": "agentic_rag_v1",
"name": "Agentic RAG System",
"version": "1.0.0",
"description": "Intelligent RAG system with multi-agent reasoning",
"capabilities": [
{
"name": "document.query",
"description": "Query documents using RAG with context retrieval",
"input_schema": { ... },
"output_schema": { ... }
},
{
"name": "agent.query",
"description": "Query specialized CoT agents for distributed reasoning",
"input_schema": {
"agent_id": "planner_agent_v1 | researcher_agent_v1 | reasoner_agent_v1 | synthesizer_agent_v1",
...
},
"output_schema": { ... }
}
],
"endpoints": {
"base_url": "http://localhost:8000",
"authentication": { ... }
}
}
Each CoT agent has its own card accessible via agent discovery:
# Discover all specialized agents
curl -X POST http://localhost:8000/a2a \
-H "Content-Type: application/json" \
-d '{"jsonrpc": "2.0", "method": "agent.discover", "params": {"capability": "agent.query"}, "id": "1"}'
This returns agent cards for:
planner_agent_v1): Problem decomposition and strategic planningresearcher_agent_v1): Information gathering from vector storesreasoner_agent_v1): Logical reasoning and analysissynthesizer_agent_v1): Final answer synthesisThe Gradio interface includes an A2A Chat Interface tab that allows you to interact with the distributed CoT agents:
Example Query Flow:
User: "What is machine learning?"
↓ (A2A: agent.query → planner_agent_v1)
Planner: Creates 4 steps
↓ (A2A: agent.query → researcher_agent_v1) × 4
Researcher: Gathers info for each step
↓ (A2A: agent.query → reasoner_agent_v1) × 4
Reasoner: Analyzes each step
↓ (A2A: agent.query → synthesizer_agent_v1)
Synthesizer: Combines into final answer
↓
User: Receives comprehensive answer with sources
A2A Endpoint Configuration (for distributed deployment):
Edit config.yaml to specify agent endpoints:
AGENT_ENDPOINTS:
planner_url: http://localhost:8000 # or remote server
researcher_url: http://localhost:8000 # or remote server
reasoner_url: http://localhost:8000 # or remote server
synthesizer_url: http://localhost:8000 # or remote server
Basic A2A functionality requires no additional configuration. The system automatically:
pytest-asyncio is installed# Check A2A health
curl -X GET http://localhost:8000/a2a/health
# View agent capabilities
curl -X GET http://localhost:8000/agent_card
# Test basic functionality
python -c "from a2a_models import A2ARequest; print('A2A models working')"
This project is open source. Please submit your contributions by forking this repository and submitting a pull request! Oracle appreciates any contributions that are made by the open source community.
Copyright (c) 2024 Oracle and/or its affiliates.
Licensed under the Universal Permissive License (UPL), Version 1.0.
See LICENSE for more details.
ORACLE AND ITS AFFILIATES DO NOT PROVIDE ANY WARRANTY WHATSOEVER, EXPRESS OR IMPLIED, FOR ANY SOFTWARE, MATERIAL OR CONTENT OF ANY KIND CONTAINED OR PRODUCED WITHIN THIS REPOSITORY, AND IN PARTICULAR SPECIFICALLY DISCLAIM ANY AND ALL IMPLIED WARRANTIES OF TITLE, NON-INFRINGEMENT, MERCHANTABILITY, AND FITNESS FOR A PARTICULAR PURPOSE. FURTHERMORE, ORACLE AND ITS AFFILIATES DO NOT REPRESENT THAT ANY CUSTOMARY SECURITY REVIEW HAS BEEN PERFORMED WITH RESPECT TO ANY SOFTWARE, MATERIAL OR CONTENT CONTAINED OR PRODUCED WITHIN THIS REPOSITORY. IN ADDITION, AND WITHOUT LIMITING THE FOREGOING, THIRD PARTIES MAY HAVE POSTED SOFTWARE, MATERIAL OR CONTENT TO THIS REPOSITORY WITHOUT ANY REVIEW. USE AT YOUR OWN RISK.
