Export and Manage Resources from Azure (Non-Greenfield Workflow)

Important Export behaviour

  • Toolkit will over-write the data in specific tabs of CD3 Excel sheet with exported content from Azure while the other tabs remain intact.
  • Differential state import of the objects will be performed, ie the import statements will be generated only for the objects which are not already there in state file.

Step 1:
Choose the Azure CD3 Excel sheet template from Excel Templates and copy at /cd3user/azure/<prefix>/

Step 2:
Modify /cd3user/azure/<prefix>/<prefix>_setUpAzure.properties
Add the location of CD3 excel file under cd3file parameter and set workflow_type to export_resources as shown below.
The other parameters are already updated with correct values.

[Default]

#Input variables required to run setUpAzure script

#path to output directory where terraform file will be generated. eg /cd3user/azure/<prefix>/terraform_files
outdir=

#prefix for output terraform files eg demo
prefix=

# Auth Params
subscription_id=

tenant_id=

client_id=

client_secret=

#path to cd3 excel eg /cd3user/azure/<prefix>\CD3-Customer.xlsx
cd3file=

#specify create_resources to create new resources in Azure(greenfield workflow)
#specify export_resources to export resources from Azure(non-greenfield workflow)
workflow_type=create_resources


Step 3:

Execute the setUpCloud.py script to start exporting the resources to CD3 and creating the terraform configuration files.

Command to Execute:

cd /cd3user/oci_tools/cd3_automation_toolkit/


python setUpCloud.py azure /cd3user/azure/<prefix>/<prefix>_setUpAure.properties

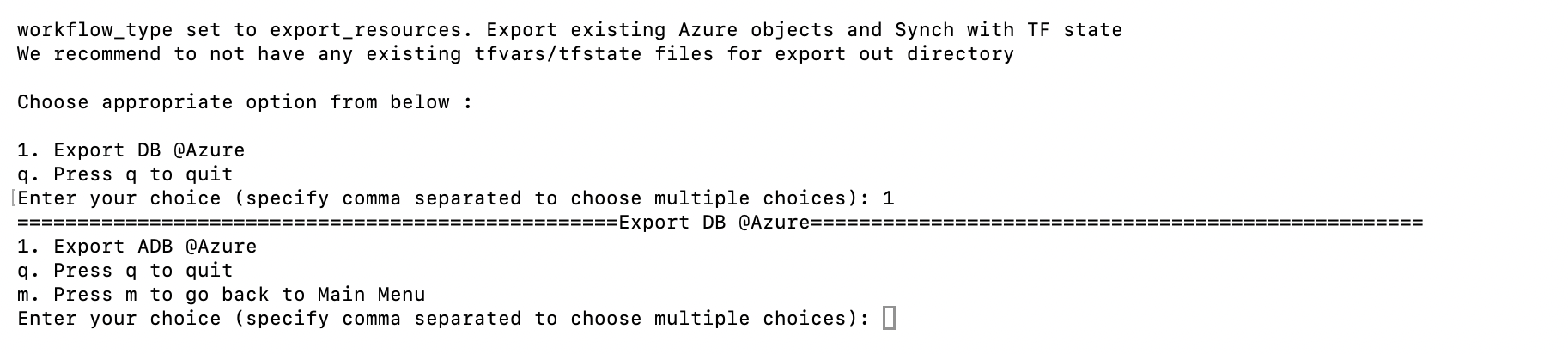

Example Execution

[cd3user@dc6dac212f79 cd3_automation_toolkit]$ python setUpCloud.py azure /cd3user/azure/az_demo/az_demo_setUpAzure.properties

workflow_type set to export_resources. Export existing Azure objects and Synch with TF state We recommend to not have any existing tfvars/tfstate files for export out directory

Choose appropriate option from below :

  1. Export DB @Azure
    q. Press q to quit

Enter your choice (specify comma separated to choose multiple choices):

Expected Outputs:

a. Excel sheet with the resource details from Azure.
b. Configuration files - *.auto.tfvars
c. Shell Script with import commands - import_commands_<resource>.sh

Step 4:

Execute the import_commands_<resource>.sh files that are generated in the outdir.
The terraform plan should show that infrastructure is up-to-date with no changes required for all regions.

Modify existing resources

  • Once the export (including the execution of import_commands_<resource>.sh) is complete, switch the value of workflow_type back to create_resources in <prefix>_setUpAzure.properties. This allows the toolkit to modify these resources or create new ones on top of them.
